Starrett LSS 124MCZ

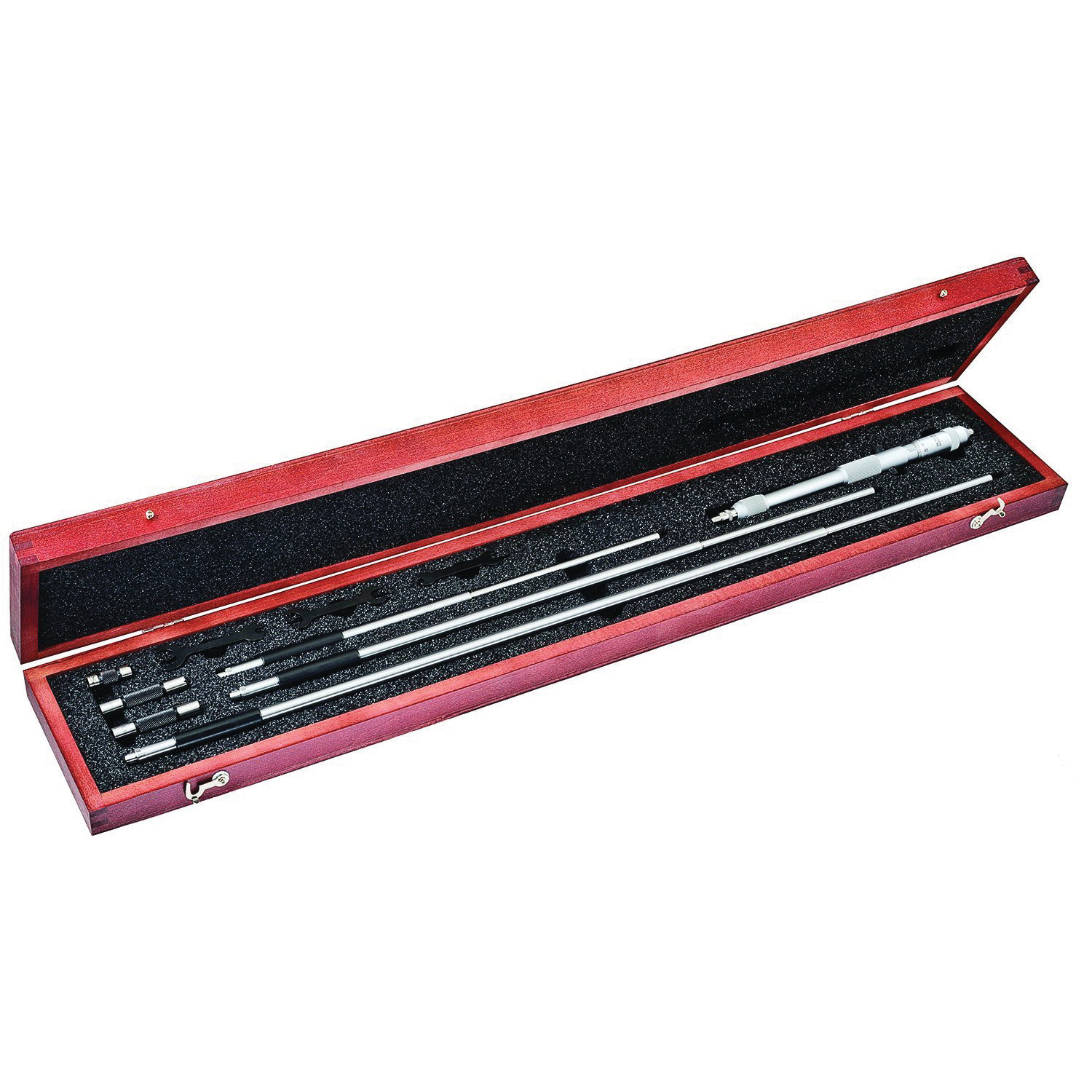

Starrett 124MCZ Solid Rod Inside Micrometer, 200 to 800 mm, Graduations: 0.01 mm
Invoice description:
Solid-rod Inside Microme Te Rs No.124 124m Se
Factory Order
Starrett Inside Micrometer, Solid Rod, Series: 124M, 200 to 800 mm, +/-0.003 mm/25 mm Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Adjustable Anvil
Features
- Insulated rods marked with length
- Adjustable for length
- Measuring rods are solid
- Hardened and ground anvils on solid rods, for accuracy
- Quick reading figures
- Features a shoulder to set in the micrometer head that locks in position to ensure accuracy
- Lightweight for ease of use
- 6-1/2 in (165mm) long handle is available (124H)
- One 25 mm, two 50 mm spacing collar
- 4 measuring rod
Specifications
ApplicationFor measuring inside diameters of cylinders and rings and measuring parallel surfaces
Accuracy+/-0.003/25 mm
Anvil TypeAdjustable
Graduations0.01 mm
Measuring Range200 to 800 mm
Resolution0.01 mm
Series124M
TypeSolid Rod
Additional Information
IncludesInside Micrometer Head Only, Barrel Spring, #124MC Metric Body, 0.375-52 Nut, Adjusting Shell, 0.294-1/2 SCR Spindle, Shell Cap, (2) Short Handle, 0.437-40 Nut, Rod Chuck, Outside-Met. Shell, Large Collar, Small Collar, 200-350 mm Rod Sub Assembly, Rod Su
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
