Starrett LSS 124MDZ

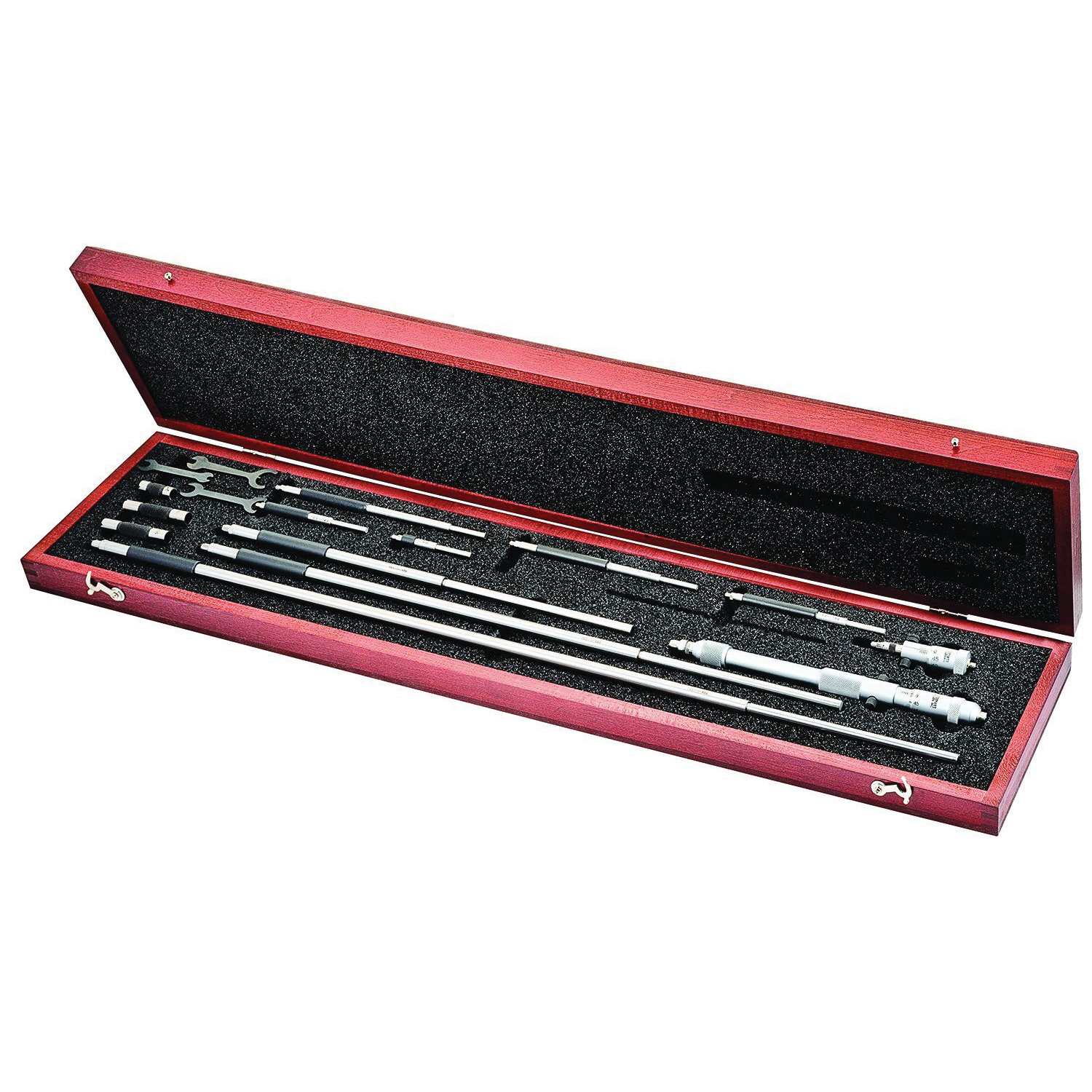

Starrett 124MDZ Solid Rod Inside Micrometer, 50 to 800 mm, Graduations: 0.01 mm
Invoice description:
Solid-rod Inside Microme Te Rs No.124 124m Se
Factory Order
Starrett Inside Micrometer, Solid Rod, Series: 124M, 50 to 800 mm, +/-0.003 mm/25 mm Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Adjustable Anvil
Features
- Insulated rods marked with length
- Adjustable for length
- Measuring rods are solid
- Hardened and ground anvils on solid rods, for accuracy
- Quick reading figures
- Features a shoulder to set in the micrometer head that locks in position to ensure accuracy
- Lightweight for ease of use
- 6-1/2 in (165mm) long handle is available (124H)
- Comprised of sets 124MA and 124M
Specifications
ApplicationFor measuring inside diameters of cylinders and rings and measuring parallel surfaces
Accuracy+/-0.003/25 mm
Anvil TypeAdjustable
Graduations0.01 mm
Measuring Range50 to 800 mm
Resolution0.01 mm
Series124M
TypeSolid Rod
Additional Information
IncludesInside Micrometer, Micrometer Head, Rod Lock Screw For Mic Head, #124MA B Metric Body, Outside Metric Shell, 0.294-1/2 mm SCR Spindle, Shell Cap, Nut,(2) Handle Screw For Mic Head, Small Collar, 50-75 mm Rod With Anvil, 1 #124M 50-75 mm Rod, Rod Point Wit
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
