Starrett LSS 128BZ

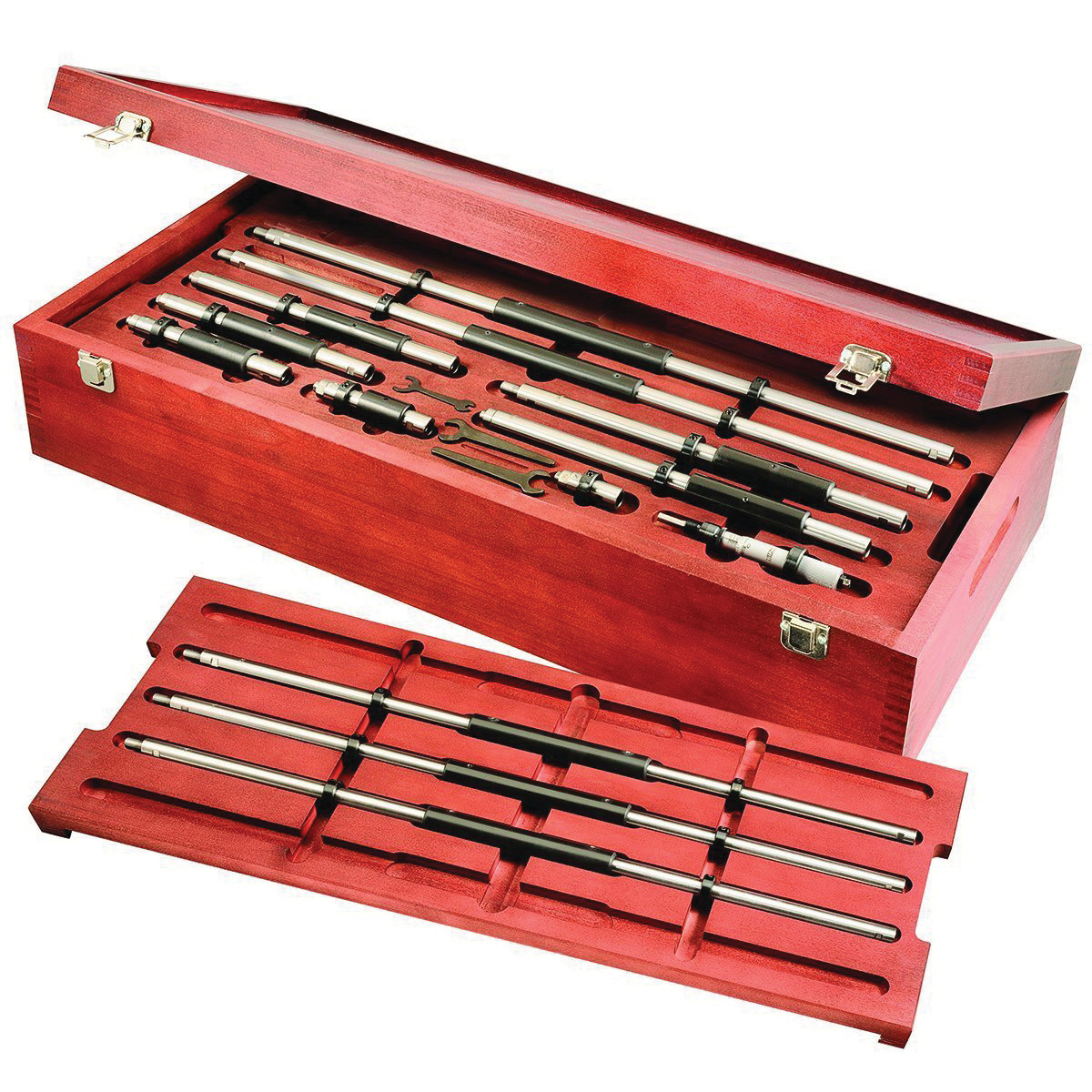

Starrett 128BZ Tubular Micrometer Head Set, 70 Pieces, 6 to 150 in Range +/-0.0001 in Accuracy, 0.001 in Graduations, Steel
Invoice description:
Inside Micrometer Sets N O. 128 128m Series 6
Factory Order
Starrett Micrometer Head Set, Tubular, Series: 128, 6 to 150 in Range +/-0.0001 in Accuracy, 0.001 in Graduations, 70 Piece, Steel, Satin Chrome
Features
- Extension rods are lightweight yet extremely rigid
- Hardened ground and lapped surfaces
- All rod anvil contacts are hardened and ground
- Measuring rod anvil contacts are adjustable
- Adjustable, ground steel supporting collars
- Interchangeable tubular steel measuring rods
- Rods provided with insulated handles to minimize expansion from hand heat
- Heads basic length of 4 in (100 mm) can be lengthened to 6 in (150 mm)
- Friction thimble
- Curved anv
Specifications
ApplicationWide Range Of Precision Inside Measurements In Aircraft, Metalworking and Other Industries
FinishSatin Chrome
MaterialSteel
Number of Pieces70
Series128
Specifications6 to 150 in Range +/-0.0001 in Accuracy, 0.001 in Graduations
TypeTubular
Additional Information
IncludesMicrometer Head Assembly, Stem, Shell, Adjusting Shell, Spindle, Inside-ENG, Lock Nut Complete, 0.085 X 0.125 X 0.108 Pin, Binder Ring, 0.089 X 0.107 X 0.062 X 0.009 X 2 Spring, 0.375-52 Nut, Barrel Spring, Rod collar, #10-32 Set X 0.188 Long Screw, Shell
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
