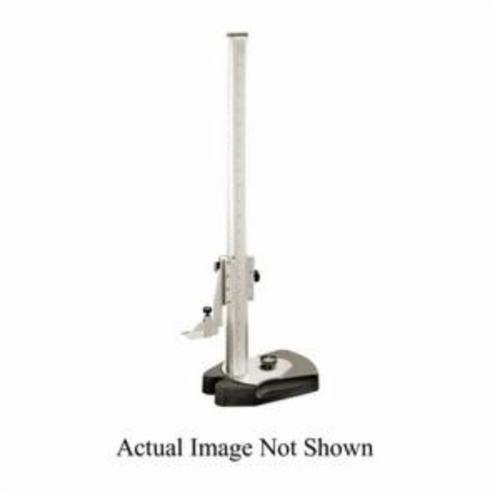

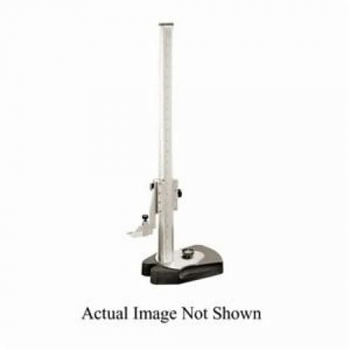

Starrett® LSS 254MZ-300

Starrett® Master Vernier Height Gage, Series: 254, 0 to 300 mm, Graduations: 0.02 mm, 150 mm Base Length, Steel, Satin Chrome, 17-49/64 in L x 3-13/16 in W x 8-11/64 in H

• Features

• 50 Division vernier scales permits half as many bar graduations as single vernier tools
• Flush fitting of the vernier scales to the main scale eliminates parallax, vernier scales are adjustable
• Black lines and figures against Starrett® satin chrome finish make reading easy
• Scriber and base are designed for direct reading from zero (bottom of base)
• Quick-adjust release on the slide allows for fast positioning
• Extremely fine adjustments by a knob on the base isolating the column and slide from external pressures
• Additional remote fine adjustment located on top of the bar for sizes 36 (900 mm) and larger
• Special master bar design and the balanced design and weight of the base eliminates vibration
• Master bars on models upto 24 and 600 mm are hardened and stabilized
• Base is hardened, ground and lapped square with the bar and has finger grooves to provide ease-of movement

Specifications

Documents

• Full Engineering Drawing
