Starrett® LSS 257A

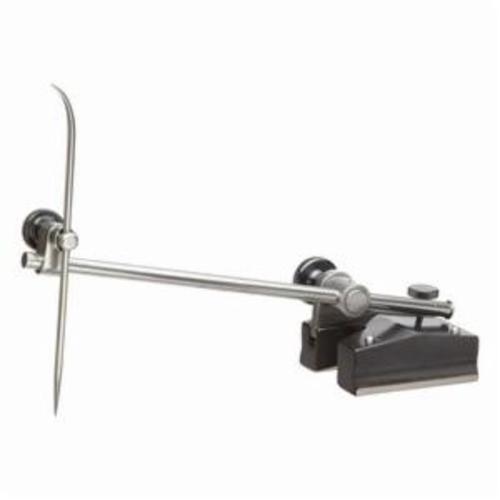

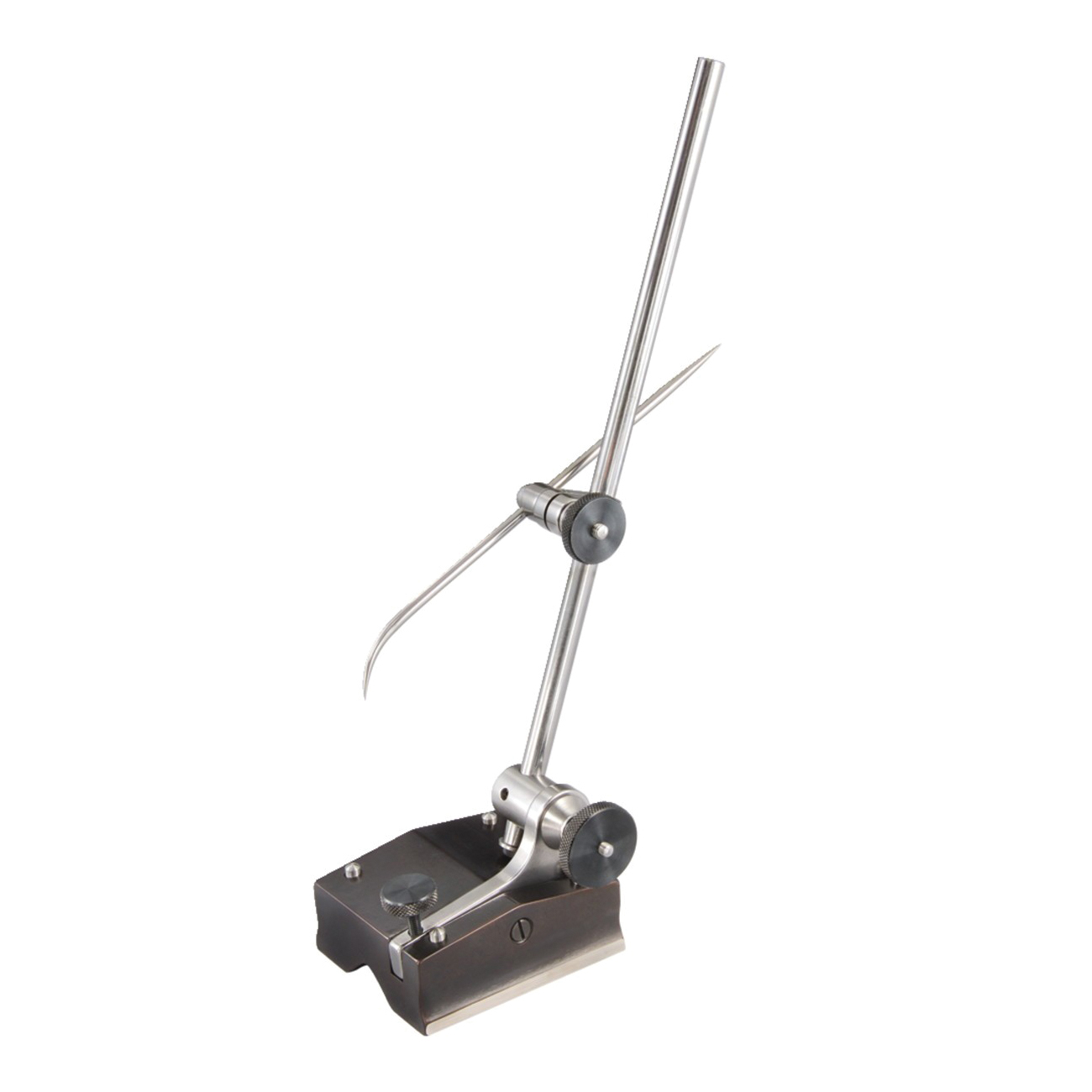

Starrett® 257A Full Sized Surface Gage

UPC: 049659512403
UNSPSC: 41114508
Manufacturer PN: 257A
$449.02 EA
Factory Order
QTY:


Starrett® Surface Gage, Full Sized, Series: 257, Hardened Steel Base, Satin Chrome

  • Features

  • Finest full size surface gage
  • Stable steel base is fully hardened, ground, nicely finished and lapped and is hand shaped for sure grip and easy movement
  • Four frictionally held gage pins that add versatility for referencing the tool
  • Long, 50-division vernier scales that can be read to 0.001 or 0.02 mm without a magnifying glass
  • Sliding snug with a knurled, ring-type lock nut for adjustment ease and secure positioning
  • The scriber and the base are designed so that the gage will read directly from zero
  • The design of the hardened and stabilized bar plus the balanced design and weight of the base eliminate vibration
  • Flush-fitting of the vernier scales to the main scale eliminates parallax
  • Vertical bar is positioned near the center of the base for balance and stability
  • Ability to scribe lines, measure with dial indicators or electronic probes and accept depth attachments

Specifications

ApplicationFor machinists and toolmakers to accurately scribing lines, transferring measurements and for probing surfaces in inspection work
Type Full Sized
Series 257
Material Hardened Steel Base
Finish Satin Chrome
