Starrett® LSS 456AZ

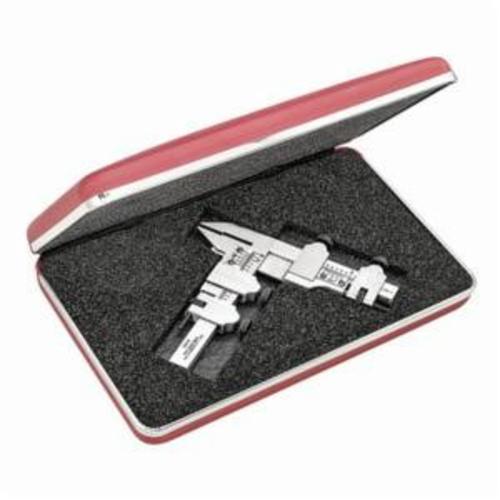

Starrett® 456AZ Gear Tooth Vernier Caliper With Case, 0 to 1-1/4 in Measuring, Graduations 0.001 in
Starrett® Gear Tooth Vernier Caliper, Series: 456, 0 to 1-1/4 in Measuring, +/-0.0005 in/ft Accuracy, Graduations: 0.001 in, Measuring System: Imperial, Adjustable Screw Nut
Features
- Adjusted independently by screws on the graduated bars
- Thickness of a tooth at the pitch line is measured by an adjustable jaw after the addendum is set by the adjustable tongue
- Caliper is designed to measure in 0.001 in or 0.02 mm the thickness of gear teeth at the pitch line using the distance from the top of a tooth to the chord
- 20 - 2 diametral pitch
Specifications
ApplicationFor measuring hobs, form and thread tools
Series 456
Measuring Range 0 to 1-1/4 in
Accuracy +/-0.0005 in/ft
Graduations 0.001 in
Measuring System Imperial
Nut Type Adjustable Screw
