Starrett LSS 463MXRL

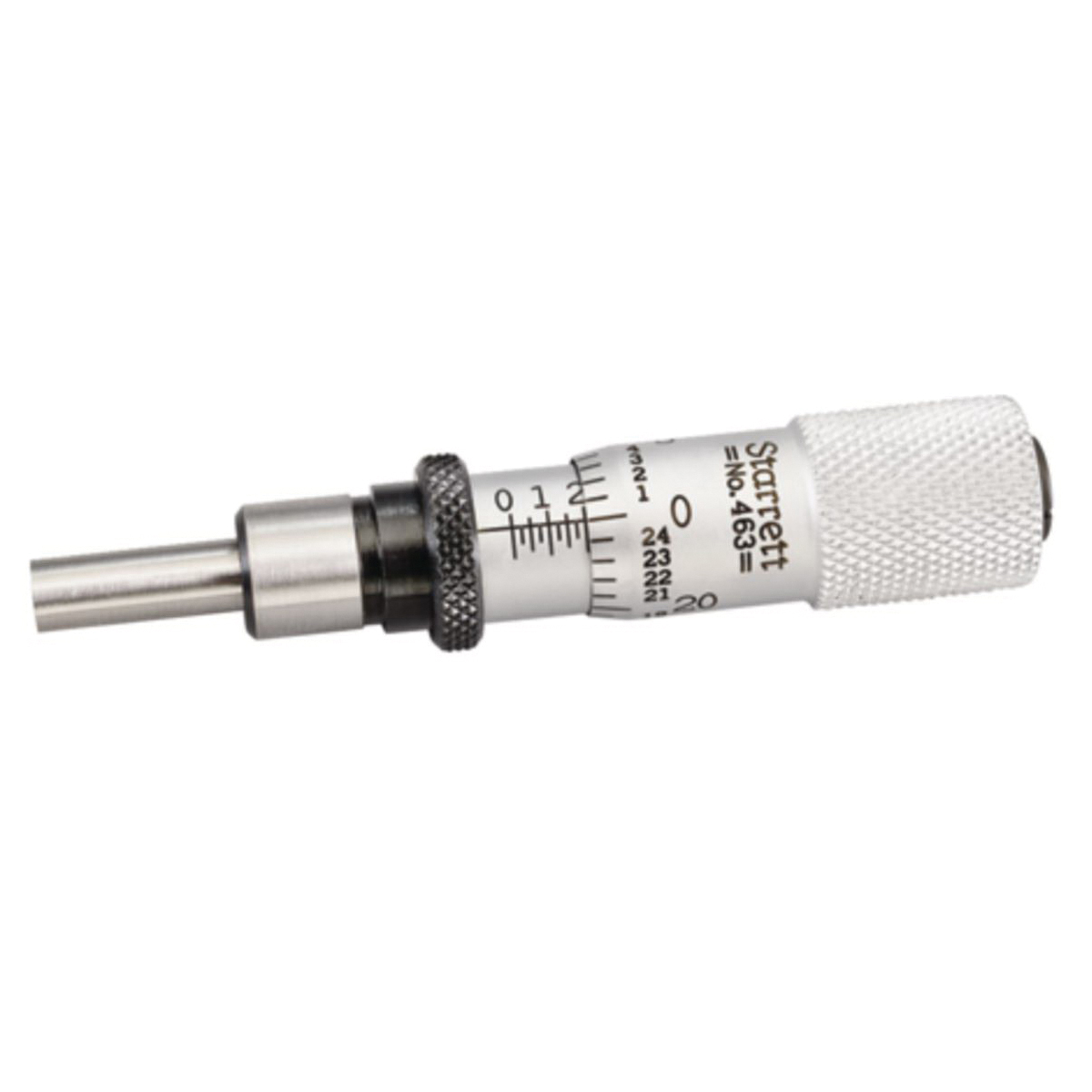

Starrett 463MXRL Mechanical Micrometer Head, 0 to 13 mm, Graduations: 0.01 mm, Carbide Tip, Satin Chrome
Factory Order
Starrett Micrometer Head, Mechanical, Series: 463, 0 to 13 mm, +/-0.002 mm Accuracy, Graduations: 0.01 mm, 0.01 mm Resolution, Flat Spindle, 3/8 in Spindle Dia, Ratchet Thimble, Carbide Tip, Satin Chrome, 8-1/4 in L x 17/32 in W
Features
- Satin chrome finish, no-glare, resists rust on all reading surfaces
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Quick reading figures
- Extremely hard and stable one-piece spindle
- Micro-lapped measuring face for flatness and squareness
- Quick and easy adjustment
- Ring type knurled lock nut
Specifications
Accuracy+/-0.002 mm
Dimensions8-1/4 in L x 17/32 in W
FinishSatin Chrome
Graduations0.01 mm
MaterialCarbide Tip
Measuring Range0 to 13 mm
Resolution0.01 mm
Series463
Spindle Diameter3/8 in
Spindle TypeFlat
Thimble TypeRatchet
TypeMechanical
