Starrett LSS 469MXSP

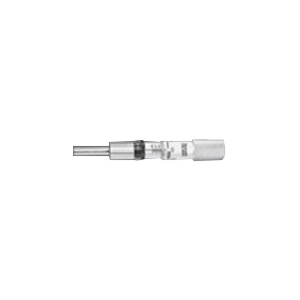

Starrett 469MXSP Mechanical Micrometer Head, 0 to 25 mm, Graduations: 0.002 mm, Carbide Tip, Satin Chrome
Factory Order
Starrett Micrometer Head, Mechanical, Series: 469, 0 to 25 mm, +/-0.00125 mm Accuracy, Graduations: 0.002 mm, 0.002 mm Resolution, Flat Spindle, 0.31 in Spindle Dia, Plain Thimble, Carbide Tip, Satin Chrome
Features
- Satin chrome finish, no-glare, resists rust on all reading surfaces
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Quick reading figures
- Extremely hard and stable one-piece spindle
- Micro-lapped measuring face for flatness and squareness
- Quick and easy adjustment
- Ring type knurled lock nut
Specifications
Accuracy+/-0.00125 mm
FinishSatin Chrome
Graduations0.002 mm
MaterialCarbide Tip
Measuring Range0 to 25 mm
Resolution0.002 mm
Series469
Spindle Diameter0.31 in
Spindle TypeFlat
Thimble TypePlain
TypeMechanical
