Starrett LSS 578

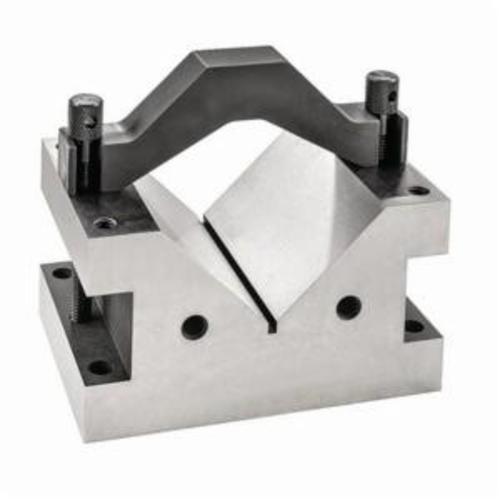

Starrett V-Block and Clamp, Series: 578, 2 Piece, 4 in Capacity, Hardened Steel, 5-1/4 in L x 3-3/8 in W x 3 in H

• Features

• V-Blocks come in a variety of styles to suit the numerous requirements of machinists
• The block is hardened and precision ground
• No clamp interference when the block lies on either side
• Precision ground flat, square and parallel

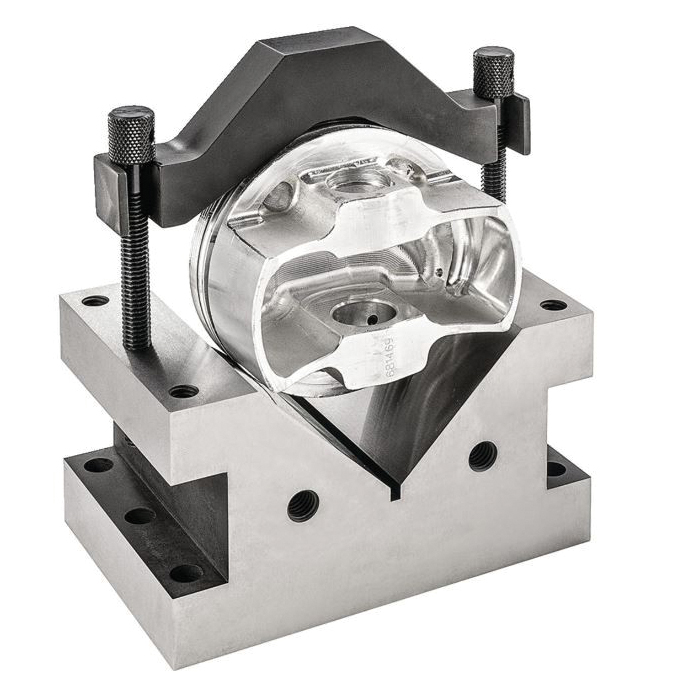

• Rugged, reversible, hardened clamp can accommodate 9/16-4 in diameters of almost any shape of work
• Three available clamp positions
• Two tapped holes in one end for mounting the V-Blocks perpendicular to faceplates
• The sides are parallel and the V is central and parallel to the sides and base

Specifications

Documents

• Full Engineering Drawing
