Dixon® DIXV 200-F-SS

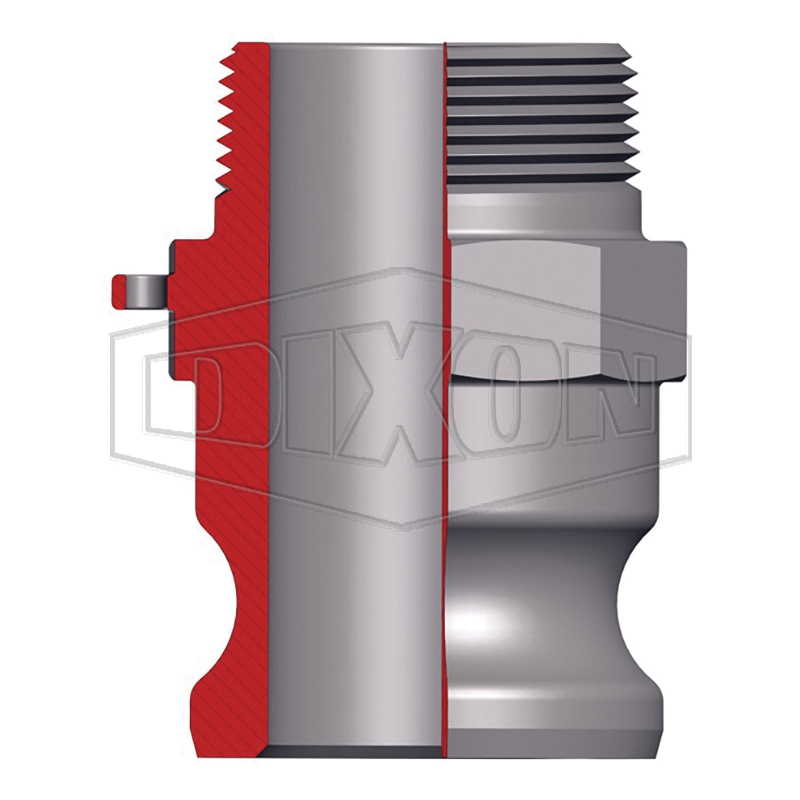

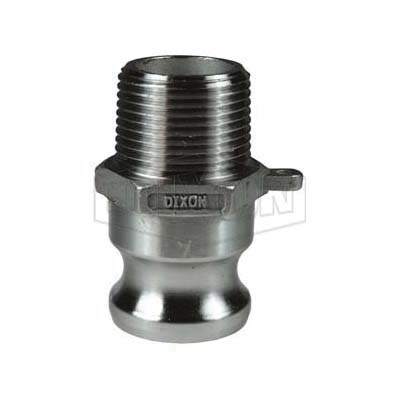

Dixon® 200-F-SS Boss-Lock™ Type F Cam and Groove Adapter, 2 in, Male Adapter x MNPT, 316 Stainless Steel, Domestic

UNSPSC: 40141734
Manufacturer PN: 200-F-SS
$78.48 EA
In stock (1)
QTY:


Dixon® Cam and Groove Adapter, Type F, Series: Boss-Lock™, Adapter, 2 in Nominal, Male Adapter x MNPT, 2-11/16 in Hex, 3-39/64 in Length, 250 psi, 316 Stainless Steel, Domestic

  • Features

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • 250 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling

Specifications

ApplicationDesigned for use with liquids
Type Type F
Series Boss-Lock™
Fitting/Connector Ty Adapter
Nominal Size 2 in
End Style Male Adapter x MNPT
Hex Size 2-11/16 in
Length 3-39/64 in
Pressure Rating 250 psi
