DeWALT DW DCN692M1

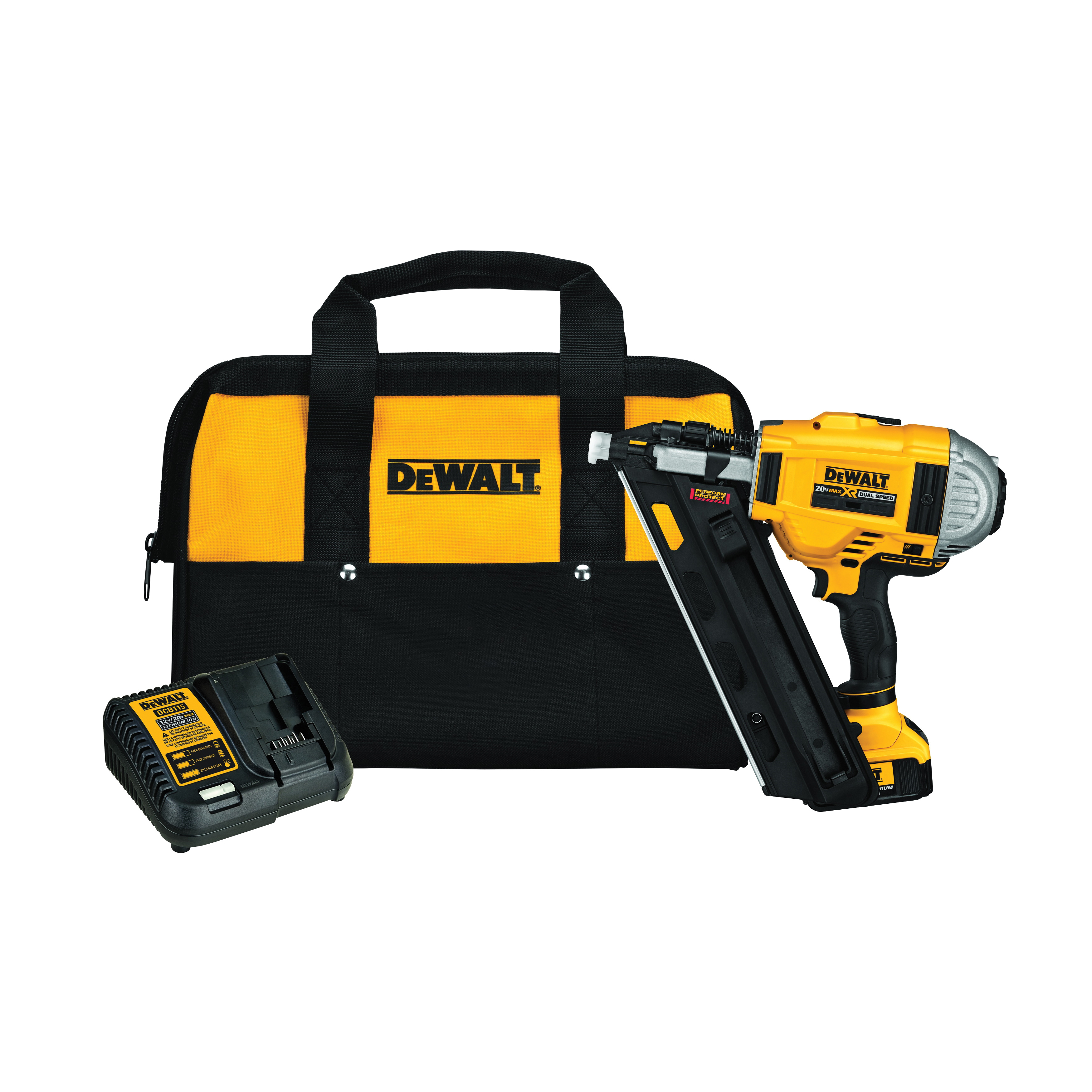

DeWALT DCN692M1 XR High Performance Cordless Framing Nailer Kit, 2 to 3-1/2 in Fastener, 55 Nails Magazine, 16 in OAL, Battery
Factory Order
DeWALT Cordless Framing Nailer Kit, High Performance, Kit Bare Tool/Kit, Series: XR, 2 to 3-1/2 in Fastener, Paper Collation, 33 deg Collation, 55 Nails Magazine, Rear Load Loading, 0.113 to 0.131 in Shank, Sequential/Bump Trigger, Non-Marring Tip, 20 VDC, Battery Power Source, Lithium-Ion Battery, 4 Ah Battery, Battery Included: Yes, Plastic Housing Material, Contoured/Overmold Handle, Yellow, Trigger Lock-Off Control, 16 in Overall Length, 4-45/64 in W x 13-3/4 in H Dimensions
Features
- Brushless motor and engine design provides enough power-to drive 3-1/2 in nails
- Sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed
- Dual speed optimizes motor speed for different nail lengths
- Easy access to the nosepiece for the removal of jammed nails
- Trigger lock-off allows trigger to be disabled when tool is not in use
- Top cap is impact-resistant and easy to remove for troubleshooting
- Accepts 30 to 34 deg paper tape nails, clipped head or offset full round head
- Stall release lever quickly resets the drive blade
- 0.113 to 0.131 ga Dia nail
- Angled magazine
Specifications
ApplicationFor precisely nailing both soft and hard joints
Bare Tool/KitKit
Battery Capacity4 Ah
Battery IncludedYes
Battery TypeLithium-Ion
Collation Angle33 deg
Collation TypePaper
ColorYellow
Control TypeTrigger Lock-Off
Dimensions4-45/64 in W x 13-3/4 in H
Fastener Size2 to 3-1/2 in
Handle TypeContoured/Overmold
Housing MaterialPlastic
Magazine Capacity55 Nails
Magazine LoadingRear Load
Overall Length16 in
Power SourceBattery
SeriesXR
Shank Size0.113 to 0.131 in
Tip TypeNon-Marring
Trigger TypeSequential/Bump
TypeHigh Performance
Voltage Rating20 VDC
