DeWALT® DW DW1608

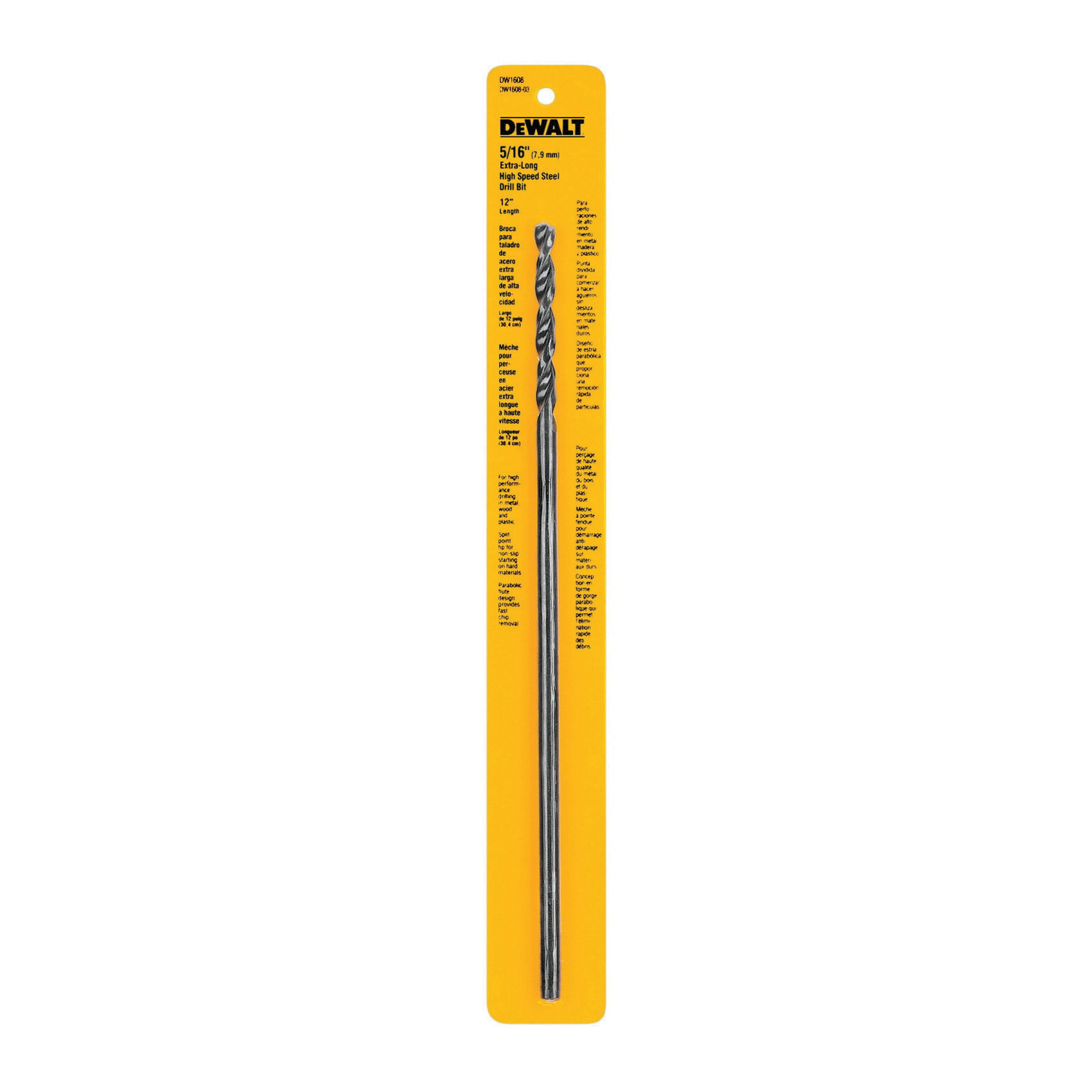

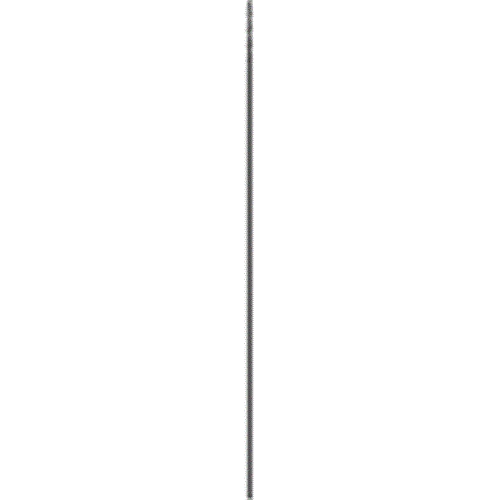

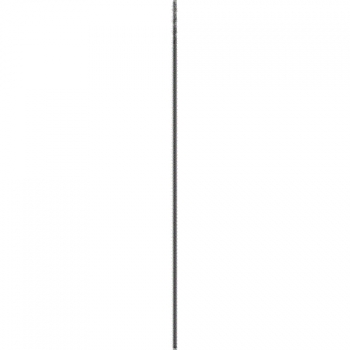

DeWALT® DW1608 Extended Length Drill, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 12 in OAL, HSS

UPC: 028874116085
UNSPSC: 27112801
Manufacturer PN: DW1608
$18.70 EA
In stock (11)
QTY:


DeWALT® Extended Length Drill, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 12 in Overall Length, 3.26 in Cutting Depth, Regular Spiral Flute, 3.26 in Flute Length, 5/16 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS, Black Oxide, Applicable Materials: Stainless Steel, Ferrous and Non-Ferrous Metal

  • Features

  • Parabolic flute design improves chip ejection in metal and wood drilling applications
  • Black oxide coated for greater wear resistance
  • 135 deg split point drills on contact and prevents walking
  • Helix is 31 deg which minimizes the over aggressiveness of a true parabolic flute

Specifications

ApplicationGeneral Purpose Applications
Drill Size - Fractio 5/16 in
Drill Size - Decimal 0.3125 in
Overall Length 12 in
Cutting Depth 3.26 in
