Dormer UTD 0010471

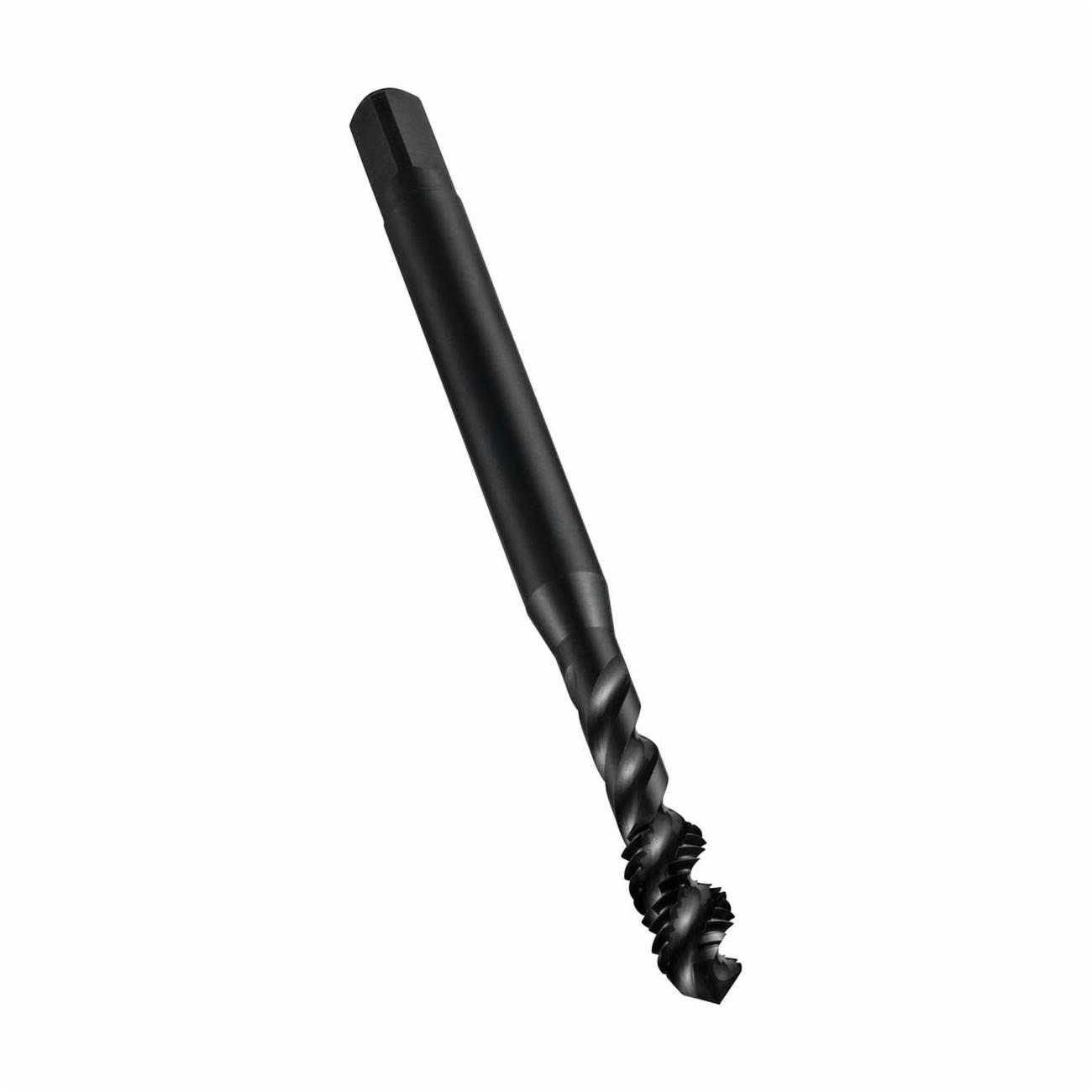

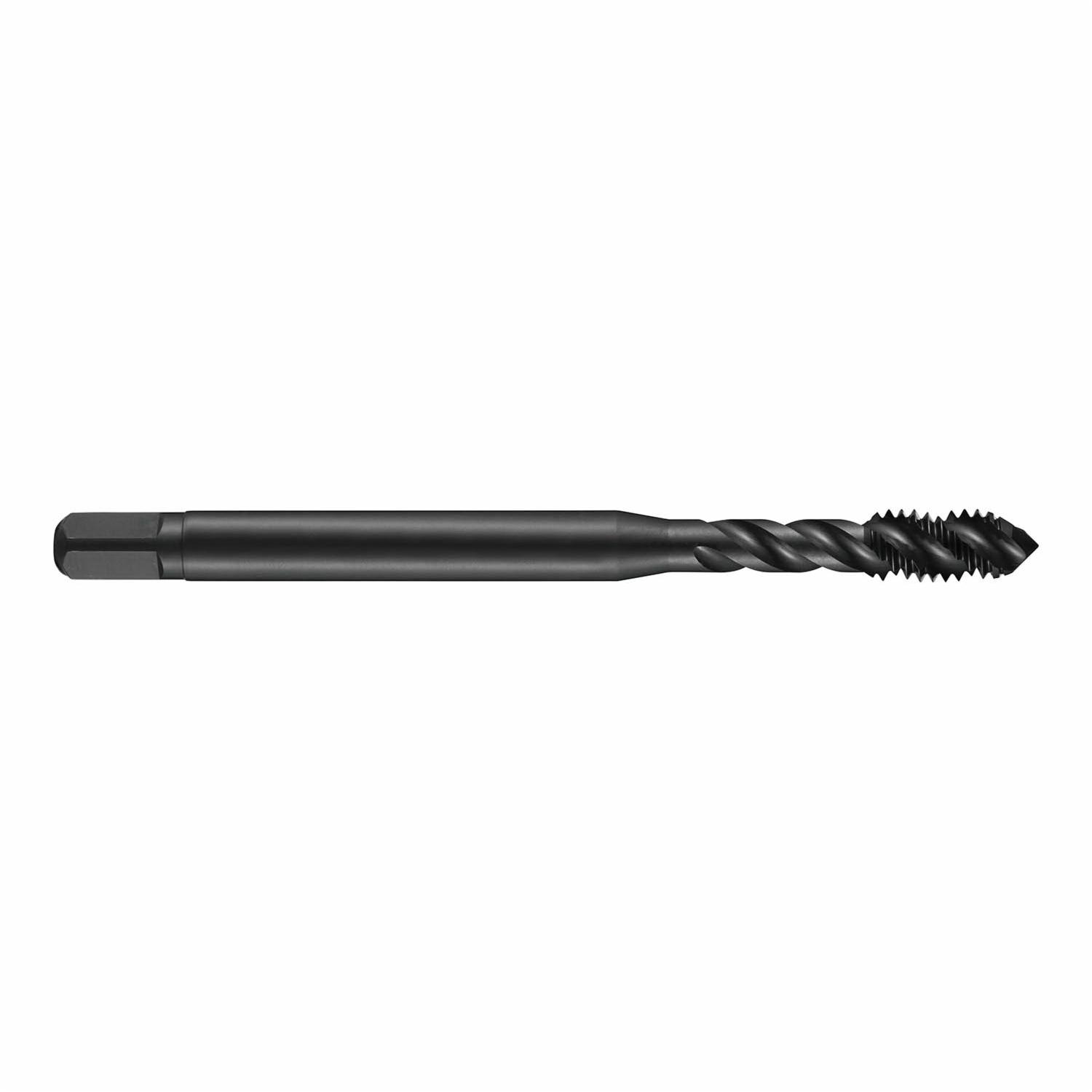

Dormer 5974022 E023 High Performance Spiral Flute Tap, #5-40 Thread, Plug Chamfer, 3 Flutes, Steam Oxide, HSS
Factory Order
Dormer Spiral Flute Tap, High Performance, Series: E023, Measurement System: Imperial, UNC, #5-40, Plug Chamfer, 3 Flutes, HSS, Steam Oxide, Class of Fit: 2B, 6 mm Thread Length, 48 mm Overall Length, 3.15 mm Shank Dia, Abrasive or Harder Ferrous Materials Material Application, No Through Coolant (Yes/No)
Features
- Premium substrate with steam oxide surface treatment reduces wear and prevents chip welding in abrasive or harder ferrous materials
Specifications
ApplicationFor multi applications
Chamfer TypePlug
Class of Fit2B
Finish/CoatingSteam Oxide
MaterialHSS
Material ApplicationAbrasive or Harder Ferrous Materials
Measurement SystemImperial
Number of Flutes3
Overall Length48 mm
SeriesE023
Shank Diameter3.15 mm
Thread Length6 mm
Thread Size#5-40
Thread StandardUNC
Through Coolant (Yes/No)No
TypeHigh Performance
