Dormer UTD 0182529

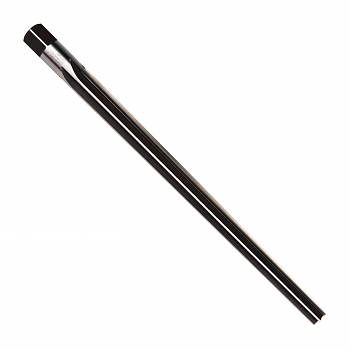

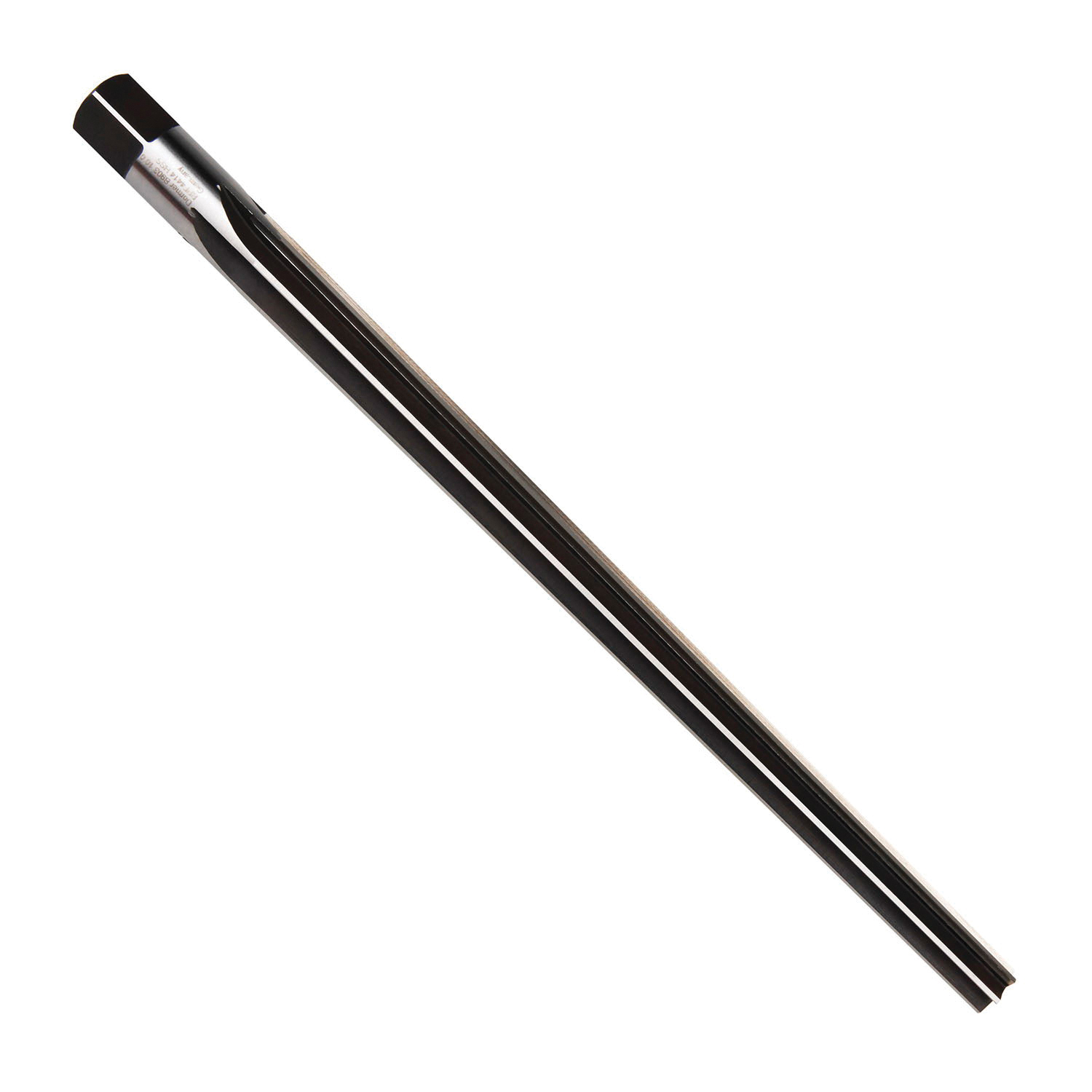

Dormer 5986870 Conical Square Drive Taper Pin Hand Reamer, 3 mm Taper Pin, 4.06 mm Dia Reamer, 2.9 mm Dia Small End, A Flute, Square Shank
Invoice description:
3.00 0182529
Factory Order
Dormer Taper Pin Hand Reamer, Conical Square Drive, Series: B903, Taper Pin Size/Number: 3 mm, 4.06 mm Dia Reamer, 2.9 mm Small End Diameter, 80 mm Overall Length, Square Shank, 4 mm Shank Diameter, 4 Flutes, A Flute, 58 mm Flute Length, HSS, Bright/Steam Oxide, Right Hand Cutting Direction, Applicable Materials: Aluminum/Cast Iron/Copper/Magnesium/Nickel/Steel/Stainless Steel/Synthetic Materials/Titanium
Features
- Straight flute reamers are the most common and used in general purpose though-hole applications
- They are used for reaming holes without interrupted cuts such as keyways and cross sections
- 3 mm taper pin size/cut diameter
- 2.90 mm small end
Specifications
ApplicationFor general purpose hand reaming applications
Applicable MaterialsAluminum/Cast Iron/Copper/Magnesium/Nickel/Steel/Stainless Steel/Synthetic Materials/Titanium
Cutting DirectionRight Hand
FinishBright/Steam Oxide
Flute Length58 mm
Flute TypeA
MaterialHSS
Number of Flutes4
Overall Length80 mm
Reamer Diameter4.06 mm
SeriesB903
Shank Diameter4 mm
Shank TypeSquare
Small End Diameter2.9 mm
Taper Pin Size/Number3 mm
TypeConical Square Drive
Additional Information
Standards/ApprovalDIN 9
Country of OriginDE
