Enerpac ENE PATG1102N

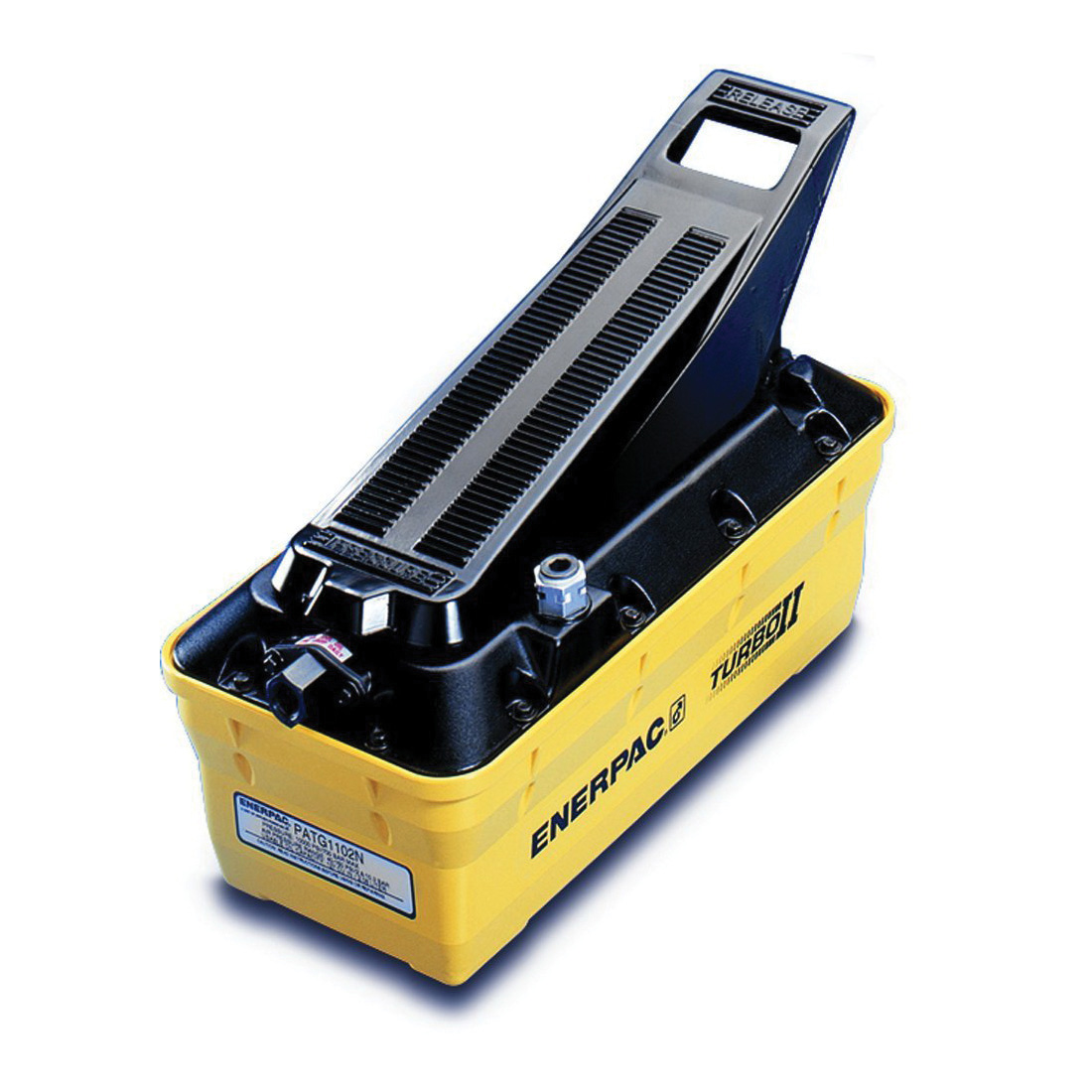

Enerpac® Air Powered Hydraulic Pump, Compact, Series: PA, 2 L, 12 scfm, 60 to 10 cu-in/min Oil Displacement, 1/4-18 FNPT Air Inlet, 127 cu-in Oil, 0.54 gal Reservoir, 40 to 125 psi Air, 76 dB, 9.04 in L, 8.29 in H

• Features

• Enerpac high pressure PA series turbo II air driven hydraulic pumps are easily operated by hand or foot
• External adjustable pressure relief valve (behind sight glass)
• Return-to-tank port for use in remote valve applications
• Internal pressure relief valve provides overload protection
• Quieter operation, single speed
• 2.8 to 8.8 bar enables pump to start at extremely low pressure
• High efficiency cast aluminium air motor
• Reinforced heavy-duty Lightweight reservoir for applications in tough environments
• Air pendant for remote control operation
• 1 phase, 10000 psi

Specifications

Additional Information

Documents

• Warranty Information

• Instruction/installation Manual

• Catalog
