Dormer UTD 0239292

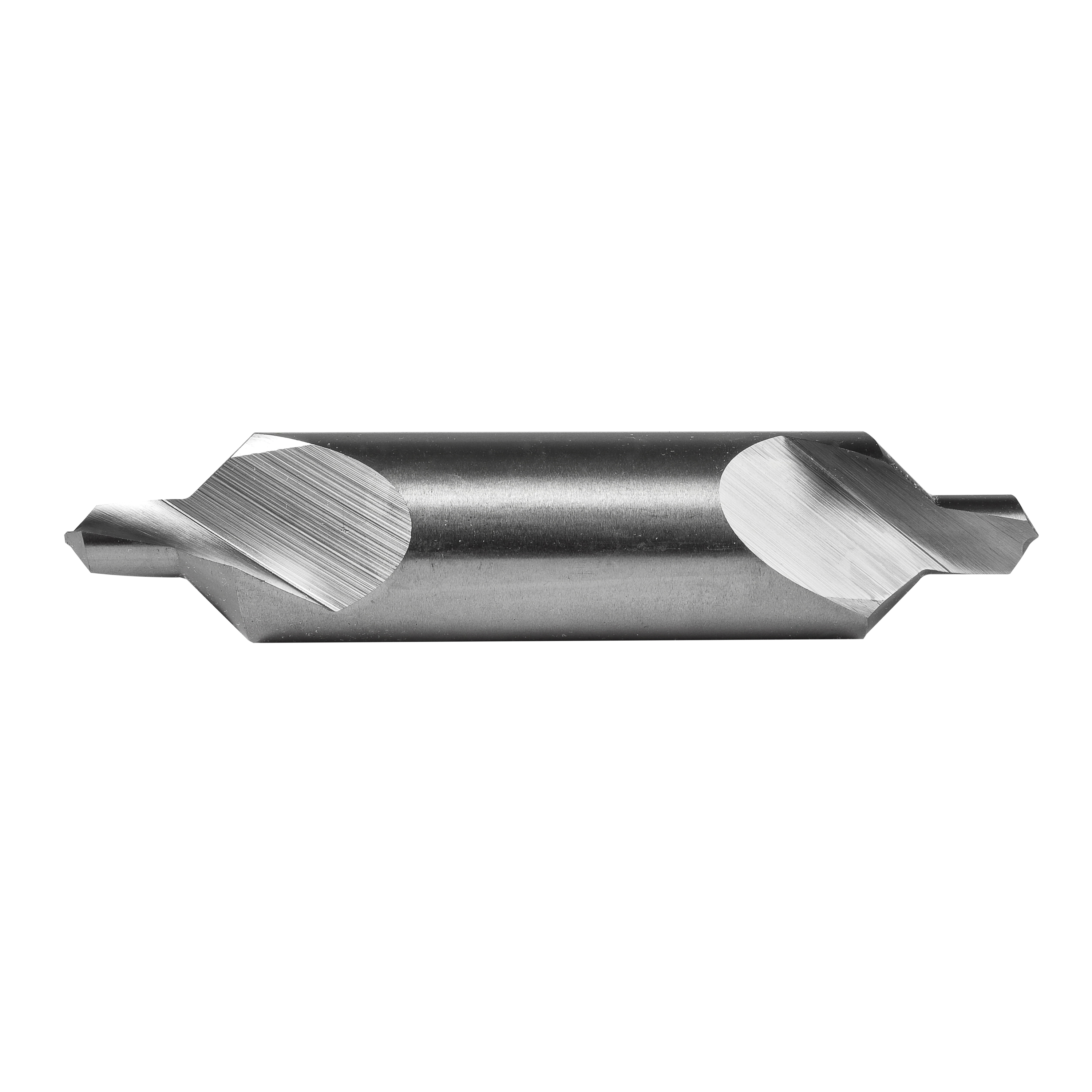

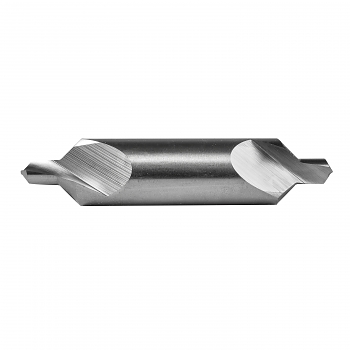

Dormer 5968986 A218 Center Drill Double End Combined Drill and Countersink, 0.0469 in Drill - Decimal Inch, 90 deg Included Angle, 120 deg Point Angle, HSS, Bright
Factory Order
Dormer Combined Drill and Countersink, Center Drill Double End, Series: A218, 0.0469 in Drill - Decimal Inch, #1 Point Diameter, 1/8 in Diameter Body, 1-1/4 in Overall Length, 0.055 to 0.067 in Flute Length, 1/8 in Shank, Straight Shank, 120 deg Point, 90 deg Included Angle, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Bright, Applicable Materials: Alloy Steel, Aluminum, Aluminum Alloy, Brass, Bronze, Carbon Steel, Cast Iron, Cermet, Copper, Copper Alloy, Free Machining Stainless Steel, Hardened Steel, Magnesium and Nickel
Features
- Bright finish improves chip flow in soft or non-ferrous materials
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials
Specifications
ApplicationFor general purpose applications on both ferrous and nonferrous materials
Applicable MaterialsAlloy Steel, Aluminum, Aluminum Alloy, Brass, Bronze, Carbon Steel, Cast Iron, Cermet, Copper, Copper Alloy, Free Machining Stainless Steel, Hardened Steel, Magnesium and Nickel
Body Diameter1/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Size - Decimal Inch0.0469 in
FinishBright
Flute Length0.055 to 0.067 in
Included Angle90 deg
MaterialHSS
Overall Length1-1/4 in
Point Angle120 deg
Point Diameter#1
SeriesA218
Shank Size1/8 in
Shank TypeStraight
TypeCenter Drill Double End
