Union Butterfield UTD 1010897

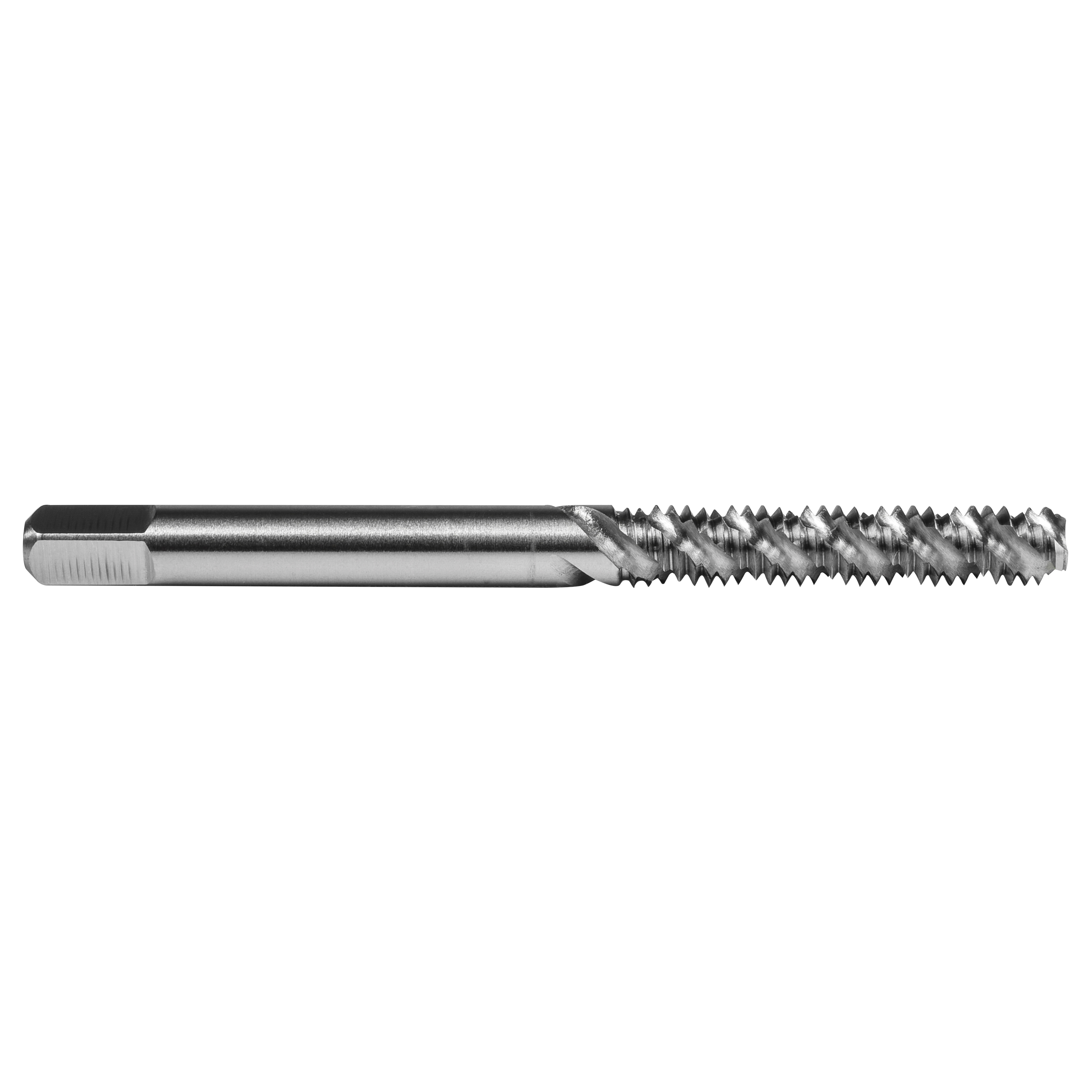

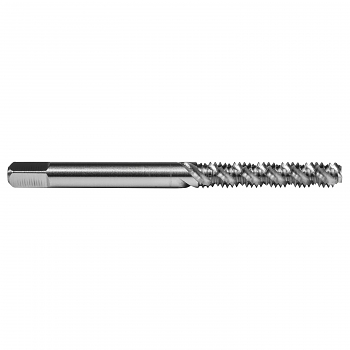

Union Butterfield 6007686 1587 Spiral Flute Tap, Right Hand Cutting, #10-24 Thread, H3 Thread Limit, Plug Chamfer, Right Hand Flute Direction, 3 Flutes, Bright, HSS
Invoice description:
1587 Plug Chamfer: Spira L Utd 1010897 Ubc 15
Factory Order
Union Butterfield Spiral Flute Tap, Series: 1587, Measurement System: Imperial, UNC, #10-24, Plug Chamfer, 3 Flutes, HSS, Bright, Class of Fit: 3B/H3, Right Hand Cutting, 7/8 in Thread Length, 2-3/8 in Overall Length, 0.194 in Shank Dia, Right Hand Flute Direction, H3 Thread Limit, Non-Ferrous Materials Material Application, No Through Coolant (Yes/No)
Features
- Similar to the regular spiral flute design of 1582/1586 except that the faster spiral improves the chip drawing action and permits the bridging of larger gaps inside a hole
- Excellent choice for non-ferrous applications
Specifications
ApplicationFor blind hole and through hole applications
Chamfer TypePlug
Class of Fit3B/H3
Cutting DirectionRight Hand
Finish/CoatingBright
Flute DirectionRight Hand
MaterialHSS
Material ApplicationNon-Ferrous Materials
Measurement SystemImperial
Number of Flutes3
Overall Length2-3/8 in
Series1587
Shank Diameter0.194 in
Thread Length7/8 in
Thread LimitH3
Thread Size#10-24
Thread StandardUNC
Through Coolant (Yes/No)No
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
