Union Butterfield UTD 5011167

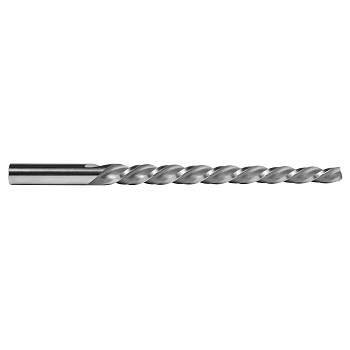

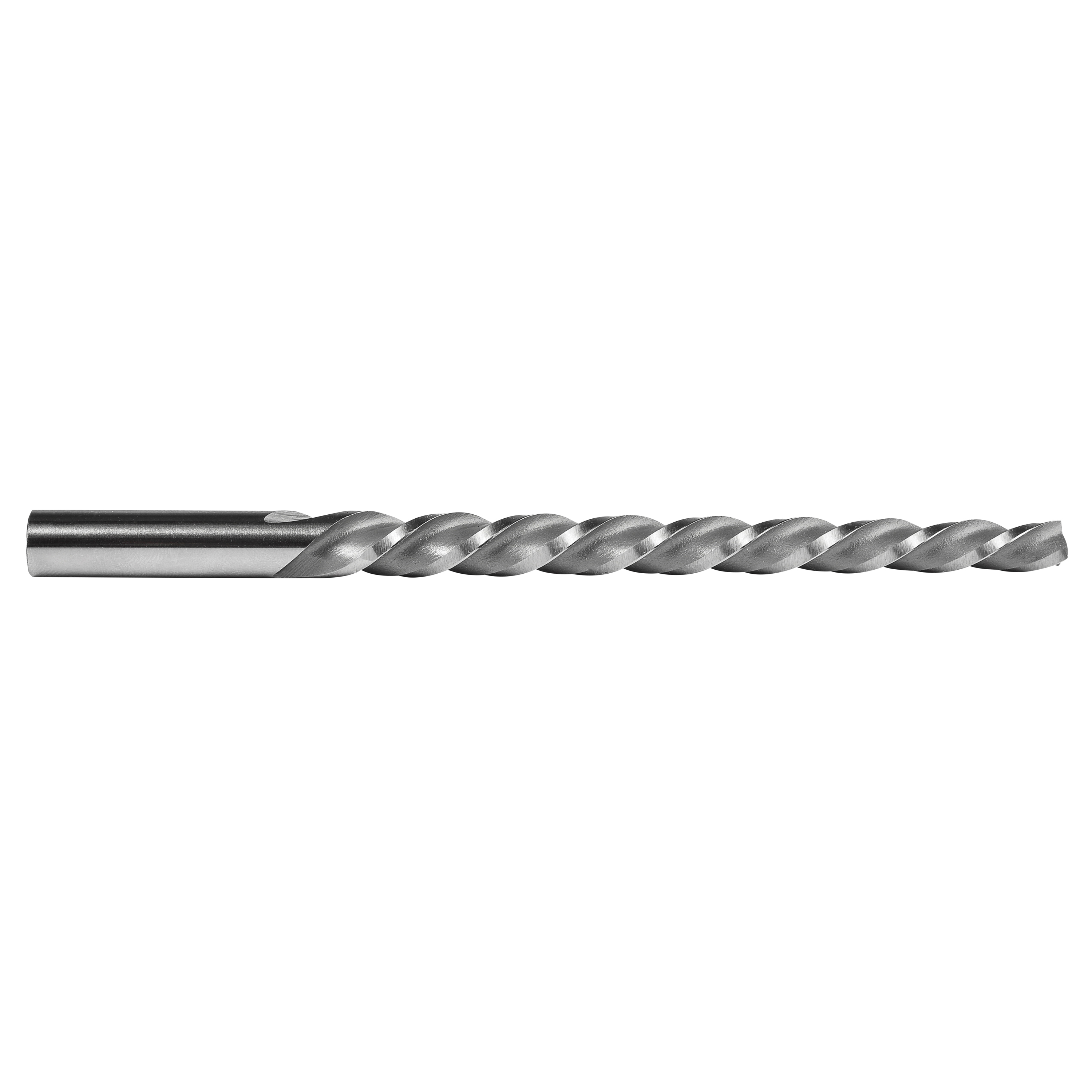

Union Butterfield 6009945 Taper Pin Reamer, #4 Taper Pin, 0.26 in Dia Reamer, 0.2071 in Dia Small End, Helical Flute, Straight Shank
Invoice description:
Hss Taper Pin Straight S Ha Utd 5011167 Ubc 4
Factory Order
Union Butterfield Taper Pin Reamer, Series: 4588, Taper Pin Size/Number: #4, 0.26 in Dia Reamer, 0.2071 in Small End Diameter, 4-1/16 in Overall Length, Straight Shank, 17/64 in Shank Diameter, 3 Flutes, Helical Flute, 2-9/16 in Flute Length, HSS, Bright, Right Hand Cutting Direction, Applicable Materials: Ferrous/Non-Ferrous Metal
Features
- High speed steel provides good wear resistance and can be used in general purpose applications
- Helical flute reamers are used for reaming taper pin holes in blind and through hole operations. these flutes are designed with a high spiral construction for reduced chip packing
- Designed to convert a straight hole into a tapered hole into which standard taper pins will fit
- Ideal geometry for the machine reaming of pin holes on a production basis
Specifications
Applicable MaterialsFerrous/Non-Ferrous Metal
Cutting DirectionRight Hand
FinishBright
Flute Length2-9/16 in
Flute TypeHelical
MaterialHSS
Number of Flutes3
Overall Length4-1/16 in
Reamer Diameter0.26 in
Series4588
Shank Diameter17/64 in
Shank TypeStraight
Small End Diameter0.2071 in
Taper Pin Size/Number#4
Additional Information
Standards/ApprovalANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
Country of OriginUS
