Bessey BESS STC-HH20

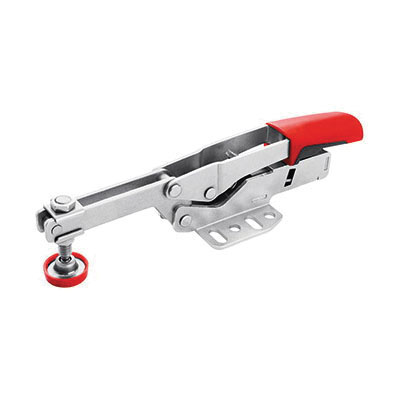

Bessey STC-HH20 Auto Adjust Horizontal Low Profile Toggle Clamp With Horizontal Base Plate, 1035 Steel, 450 lb Holding

Invoice description: Clamp, Toggle Clamp, Hor Iz 26 Ntal Low Profi

UPC: 091162140031
UNSPSC: 27112132
Manufacturer PN: STC-HH20
$37.29 EA
Factory Order
Estimated to ship in 14 days
QTY:


Bessey Toggle Clamp, Auto Adjust Horizontal Low Profile, 450 lb Holding, 25 to 250 lb Clamping, 1.65 in Overall Height, 6.65 in Overall Length, Ergonomic Handle, 1.97 in L x 1.02 in W Handle, Composite Plastic Handle, Horizontal Base, 1035 Steel, Nickel Plated

  • Features

  • In the clamped position, the lever is horizontal
  • Automatic and infinitely variable adjustment of the clamping height up to 35 mm while clamping force remains unchanged, without having to make manual changes to the position of the pressure screws
  • Clamping force is variable up to 2500 N depending on the adjustment of the set screw in the cantilevered joint
  • Sturdy, tempered metal sheets for a long service life
  • Hole pattern on the base plate designed to facilitate fast and secure clamping set-up for metric and imperial
  • High-quality oil resistant 2-component plastic handle
  • Ready to go - the first time and for quick set-up during workpiece changes
  • Uncompromisingly versatile
  • Powerful and gentle

Specifications

Base TypeHorizontal
Clamping Pressure25 to 250 lb
FinishNickel Plated
Handle MaterialComposite Plastic
Handle Size1.97 in L x 1.02 in W
Handle TypeErgonomic
Holding Capacity450 lb
Material1035 Steel
Overall Height1.65 in
Overall Length6.65 in
TypeAuto Adjust Horizontal Low Profile

Additional Information

IncludesOpen Arm, 3/16 in or M5 Fastener and Non-Marring Plastic Cap
WarrantyLimited Lifetime
Country of OriginCN
