Bessey BESS STC-IHH15

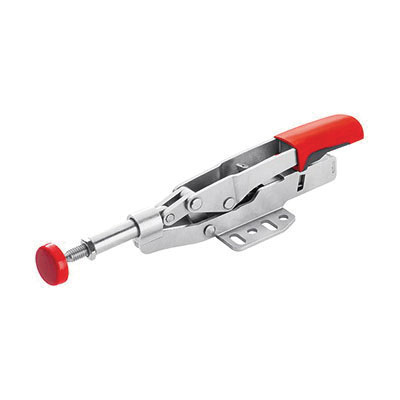

Bessey STC-IHH15 Auto Adjust Inline Push/Pull Low Profile Toggle Clamp With Flanged Base Plate, 1035 Steel, 450 lb Holding

Invoice description: Clamp, Toggle Clamp, Hor Iz 26 Ntal Push Pull

UPC: 091162140062
UNSPSC: 27112132
Manufacturer PN: STC-IHH15
$39.76 EA
Factory Order
Estimated to ship in 14 days
QTY:


Bessey Toggle Clamp, Auto Adjust Inline Push/Pull Low Profile, 450 lb Holding, 25 to 250 lb Clamping, 1.42 in Overall Height, 7.01 in Overall Length, Ergonomic Handle, 1.97 in L x 1.02 in W Handle, Composite Plastic Handle, Horizontal Base, 1035 Steel, Nickel Plated

  • Features

  • Moving the handle moves the push-pull rod

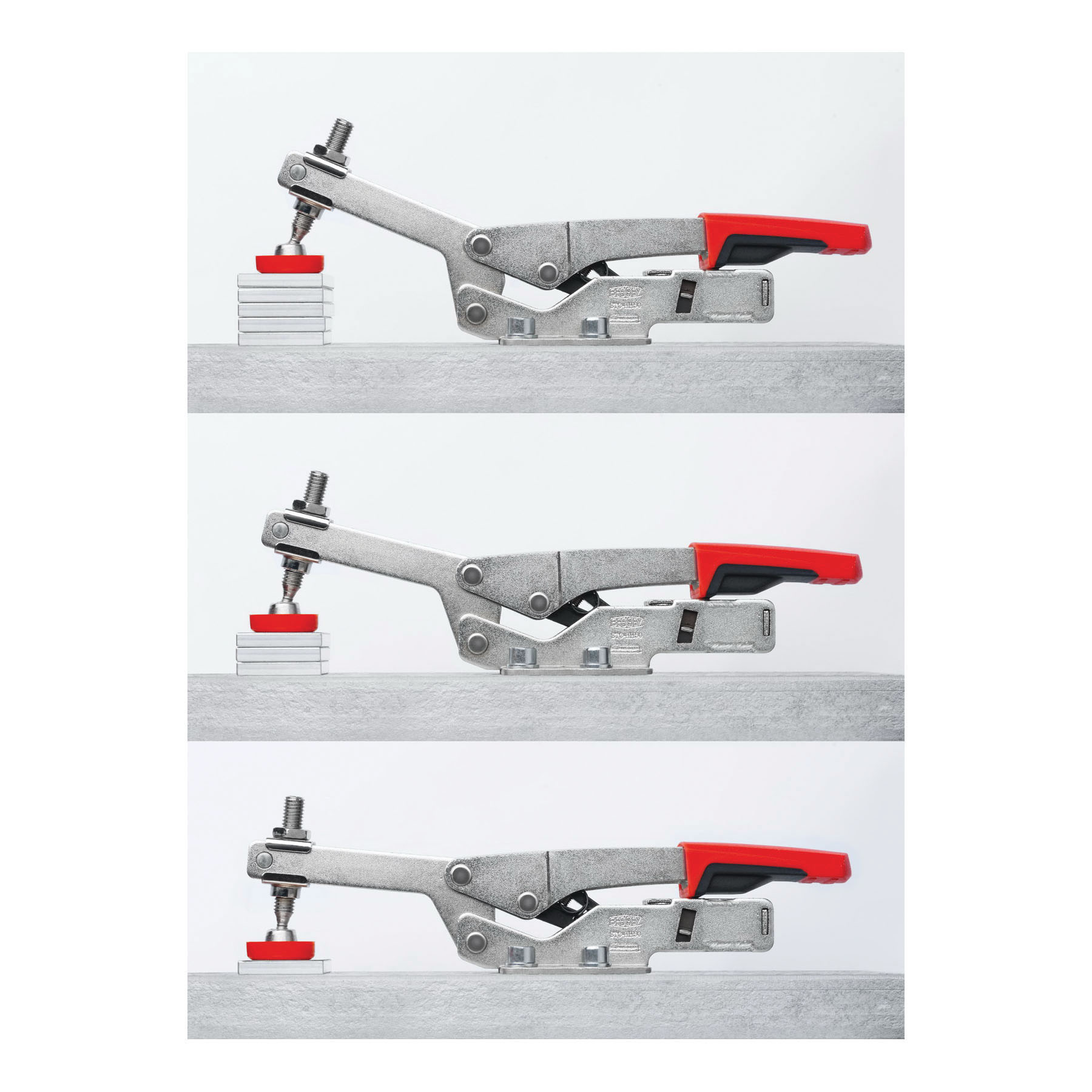

  • Automatic and infinitely variable adjustment of the clamping height up to 13 mm while clamping force remains unchanged, without having to make manual changes to the position of the pressure screws
  • Adjustable clamping force up to 2500 N, based on the adjusting screw in the joint
  • Sturdy, tempered metal sheets for a long service life
  • Base plate hole pattern suitable for millimeters and inches
  • High-quality oil resistant 2-component plastic handle
  • Ready to go - the first time and for quick set-up during workpiece changes
  • Uncompromisingly versatile
  • Powerful and gentle

Specifications

Base TypeHorizontal
Clamping Pressure25 to 250 lb
FinishNickel Plated
Handle MaterialComposite Plastic
Handle Size1.97 in L x 1.02 in W
Handle TypeErgonomic
Holding Capacity450 lb
Material1035 Steel
Overall Height1.42 in
Overall Length7.01 in
TypeAuto Adjust Inline Push/Pull Low Profile

Additional Information

Includes3/16 in or M5 Fastener and Non-Marring Plastic Cap
WarrantyLimited Lifetime
Country of OriginCN
