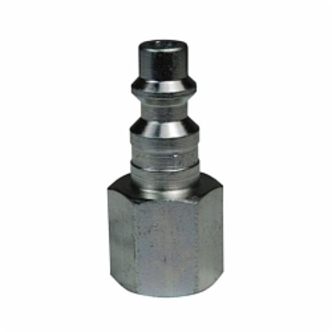

Dixon DIXV D2F3

Dixon D2F3 DF Series Industrial Interchange Quick Disconnect Pneumatic Nipple, 1/4 x 3/8 in Nominal, Quick Disconnect Plug x FNPT, 500 psi Pressure, Steel

Invoice description: 1/4 Ind Nip 3/8 Ntpf Nip Pl

UNSPSC: 40183100
Manufacturer PN: D2F3
$3.75 EA
Factory Order
Estimated to ship in 14 days
QTY:


Dixon Quick Disconnect Pneumatic Nipple, Industrial Interchange, Series: DF Series, 1/4 x 3/8 in Nominal, Quick Disconnect Plug x FNPT End Style, 7/8 in Hex, 1.66 in Length, 500 psi Pressure, -40 to 250 deg F, Steel, 1.01 in OD

  • Features

  • Machined components are manufactured using solid bar stock

Specifications

ApplicationIndustrial Fittings
Dimensions1.01 in OD
End StyleQuick Disconnect Plug x FNPT
Hex Size7/8 in
Length1.66 in
MaterialSteel
Nominal Size1/4 x 3/8 in
Pressure Rating500 psi
SeriesDF Series
Temperature Rating-40 to 250 deg F
TypeIndustrial Interchange

Additional Information

WarrantyLimited
Standards/ApprovalA-A-59439|MIL-C-4109F
Country of OriginUS
