Dixon DIXV DC20

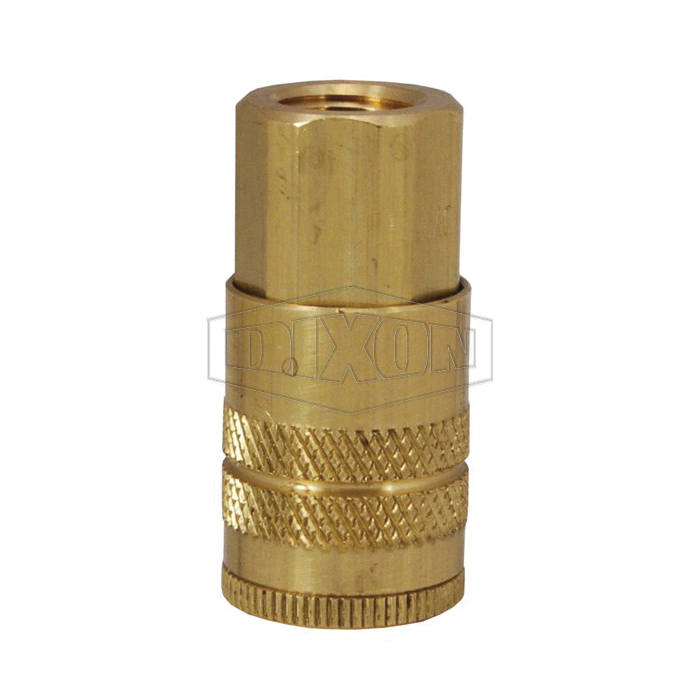

Dixon DC20 Air Chief Industrial Female Quick Connect Coupler, 1/4-18 Nominal, Quick Connect Coupler x NPTF, 300 psi Pressure, Brass, Domestic

Invoice description: 1/4x1/4 F Npt A Lr

UNSPSC: 27131613
Manufacturer PN: DC20
$12.30 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dixon Female Quick Connect Coupler, Air Chief Industrial, 1/4-18 Nominal, Quick Connect Coupler x NPTF End Style, 3/4 in Hex, 2.07 in Length, 300 psi Pressure, -40 to 250 deg F, Brass, 0.93 in OD, Domestic

  • Features

  • Semi-automatic- pull sleeve to connect
  • Couplers shut-off when disconnected

Specifications

Dimensions0.93 in OD
Domestic/ImportDomestic
End StyleQuick Connect Coupler x NPTF
Hex Size3/4 in
Length2.07 in
MaterialBrass
Nominal Size1/4-18
Pressure Rating300 psi
Temperature Rating-40 to 250 deg F
TypeAir Chief Industrial

Additional Information

WarrantyLimited
Standards/ApprovalA-A-59439|MIL-C-4109F
Country of OriginUS
