Dixon DIXV DC2044

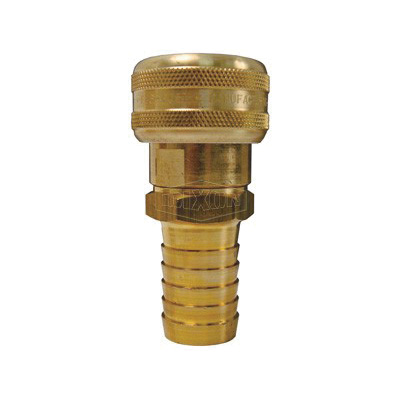

Dixon DC2044 Air Chief Industrial Quick Disconnect Coupler, 3/8 x 1/4 in Nominal, Quick Disconnect Coupler x Hose Barb, 300 psi Pressure, Brass, Domestic
Invoice description:
Coupler Air 1/4 Fm X 3/8 Stem
Factory Order
Dixon Quick Disconnect Coupler, Air Chief Industrial, 3/8 x 1/4 in Nominal, Quick Disconnect Coupler x Hose Barb End Style, 300 psi Pressure, -40 to 250 deg F, Brass, Domestic
Features
- Couplers shut-off when disconnected
- Semi-automatic pull sleeve to connect
- For air service only
- Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination
- Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
Specifications
Domestic/ImportDomestic
End StyleQuick Disconnect Coupler x Hose Barb
MaterialBrass
Nominal Size3/8 x 1/4 in
Pressure Rating300 psi
Temperature Rating-40 to 250 deg F
TypeAir Chief Industrial
Additional Information
WarrantyLimited
Country of OriginUS
Catalog
