Harvey Tool HARV 772116

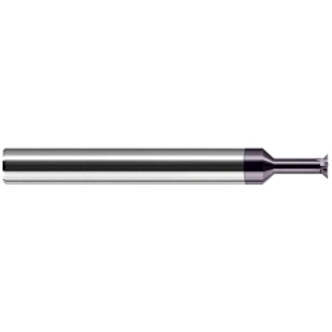

Harvey Tool 772116 Chamfer Cutter, 0.25 in Dia Cutter Head, 2-1/2 in OAL, Cylindrical Shank, 0.044 in W Chamfer
Invoice description:
Back Cham 1/4x.044x5/8 5 Fl N/c
Manufacturer PN: 772116
$149.86 EACH
Factory OrderEstimated to ship in 14 days
Harvey Tool, 772116, Chamfer Cutter, 0.25 in Diameter Cutter Head, 90 deg Included Angle, 0.044 in Chamfer Width, 2-1/2 in Overall Length, Cylindrical Shank, 1/4 in Shank Diameter, Right Hand Cutting Direction, Chamfer Threaded End Style, 5 Flutes, Solid Carbide, Uncoated
Features
- Low profile design and greater radial projection ideal for generating chamfered features on the backside of small holes or slots
- Decrease costs by avoiding time-consuming changes to part set-ups
- Slightly undersized to fit in common hole sizes
- Applicable Materials are Aluminum, Cast Iron, Steel, Stainless Steel, Wood, Composites
- Axial Length Of Cut 0.0440 in
- Neck Diameter 0.1560 in (5/32)
- Neck Length 0.6250 in (5/8)
- Profile Back Chamfer
Specifications
ApplicationGenerating Chamfered features on the backside of small holes or slots
Chamfer Width0.044 in
Cutter Head Diameter0.25 in
Cutting DirectionRight Hand
End StyleChamfer Threaded
FinishUncoated
Included Angle90 deg
MaterialSolid Carbide
Number of Flutes5
Overall Length2-1/2 in
Shank Diameter1/4 in
Shank TypeCylindrical
Additional Information
Standards/ApprovalPROP65: This product contains chemicals known to the State of California to cause cancer
Country of OriginUS
