Iscar ISCAR 5622525

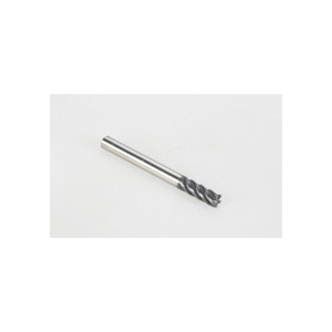

Iscar 5622525 CHATTERFREE Regular Length Single End End Mill, 1/4 in Dia Cutter, 0.008 in Corner Radius, 0.63 in Length of Cut, 5 Flutes, 1/4 in Dia Shank, 2-1/2 in OAL, PVD-TiAlN Coated
Invoice description:
Eci-e5l250-625c250cf
Factory Order
Iscar End Mill, Regular Length Single End, Series: CHATTERFREE, 1/4 in Diameter Cutter, 0.008 in Corner Radius, 2-1/2 in Overall Length, 0.63 in Length of Cut, 5 Flutes, Right Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Round Shank, ANSI Code: ECI-E5L250-625C250CF, Submicron Solid Carbide, PVD-TiAlN Coated
Features
- IC900 grade - a tough sub micron PVD TiAlN coated grade
- Suitable for medium to high cutting speed
- Designed for machining of heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at interrupted cuts
- 5-flute, 38 deg helix with variable pitch for roughing and finishing operations
- High material removal rates chatter free
- Full slot milling up to 1XD
Specifications
ApplicationHelical Interpolation, Rampdown, Shouldering and Slotting
ANSI CodeECI-E5L250-625C250CF
Corner Radius0.008 in
Cutter Diameter1/4 in
Cutting DirectionRight Hand
FinishPVD-TiAlN Coated
Flute TypeRight Spiral
Helix Angle38 deg
Length of Cut0.63 in
MaterialSubmicron Solid Carbide
Number of Flutes5
Overall Length2-1/2 in
SeriesCHATTERFREE
Shank Diameter1/4 in
Shank TypeRound
TypeRegular Length Single End
