Iscar ISCAR 5622639

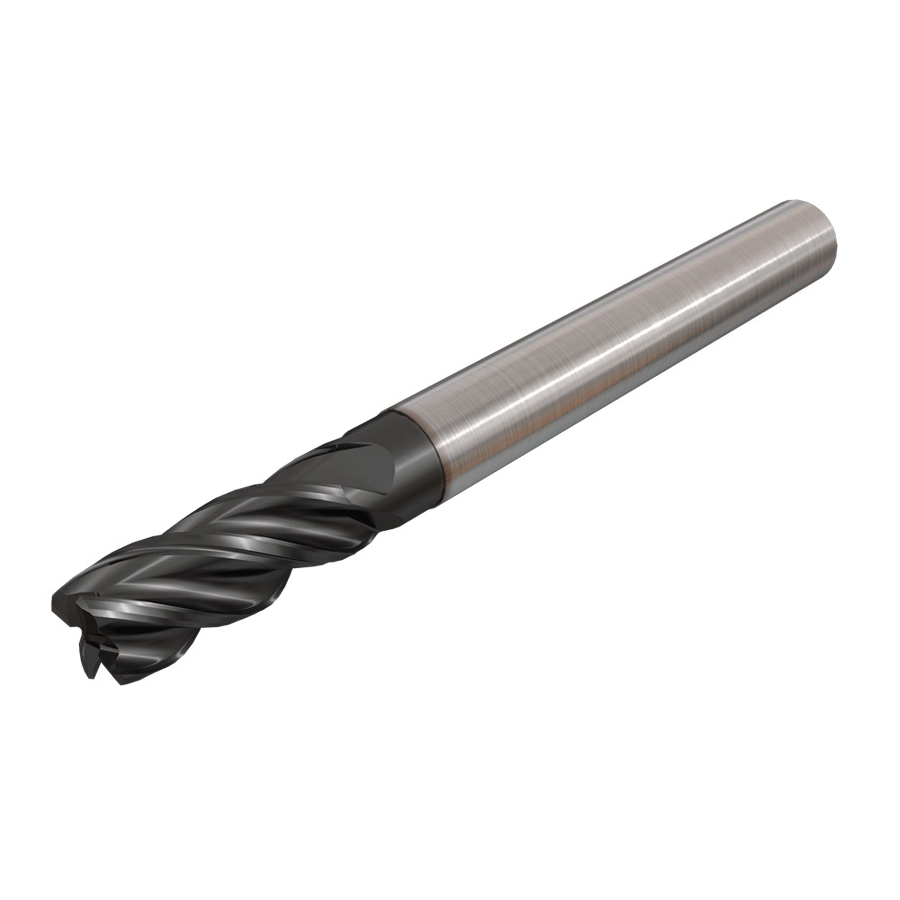

Iscar 5622639 CHATTERFREE Corner Chamfer End Mill, 3 mm Dia Cutter, 11 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 57 mm OAL
Invoice description:
Ec-e4l 03-8/11c06cf57 90
Factory Order
Iscar Corner Chamfer End Mill, Series: CHATTERFREE, 3 mm Cutter Dia, 57 mm Overall Length, 11 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 38 deg Helix Angle, Cylindrical Shank, Solid Carbide
Features
- 4-flute end mills with 38 deg helix, variable pitch for chatter free roughing and finishing operations
- High material removal rates
- Used for machining alloyed and stainless steel, titanium and exotic materials
- Full slot milling - up to 3XD
Specifications
ApplicationMilling
Cutter Diameter3 mm
Cutting DirectionRight Hand
Flute TypeSpiral
Helix Angle38 deg
Length of Cut11 mm
MaterialSolid Carbide
Number of Flutes4
Overall Length57 mm
SeriesCHATTERFREE
Shank Diameter6 mm
Shank TypeCylindrical
Additional Information
Standards/ApprovalISO 13399
