Sandvik Coromant SANC 5926249

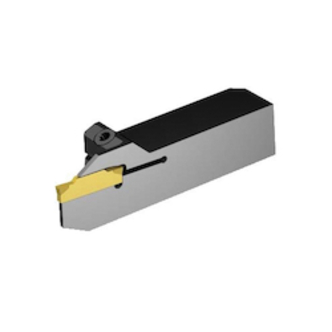

Sandvik Coromant 5926249 CoroCut 1-2 QS Shank Tool, Insert Compatibility: N123D2-0150-0002-CM, D Insert Seat, Left Hand Cutting, External, 16 mm H x 16 mm W Shank, QS-R/LF123..B Toolholder
Invoice description:
Hldr Qs-lf123d17-1616b
Factory Order
Sandvik Coromant Shank Tool, Series: CoroCut 1-2 QS, Insert Compatibility: N123D2-0150-0002-CM, QS-R/LF123..B Toolholder, 28.6 mm Head Length, 70 mm Overall Length, Rectangle Shank, 16 mm H x 16 mm W Shank, D Insert Seat, Left Hand Cutting Direction, 17 mm Maximum Depth of Cut, Countersunk Head Screw, Steel, External
Features
- 0 deg body workpiece side
- 20 life cycle state
- Without coolant entry
- 34 mm maximum workpiece parting diameter
- No coolant exit
- 90 deg cutting edge
- 28.6 mm minimum overhang
- 2.5 Nm torque
- 1 insert required
- 0 deg inclination
Specifications
ApplicationParting and Grooving
Cutting DirectionLeft Hand
Head Length28.6 mm
Insert CompatibilityN123D2-0150-0002-CM
Insert Seat SizeD
Internal or ExternalExternal
MaterialSteel
Maximum Depth of Cut17 mm
Overall Length70 mm
Screw TypeCountersunk Head
SeriesCoroCut 1-2 QS
Shank Size16 mm H x 16 mm W
Shank TypeRectangle
Toolholder TypeQS-R/LF123..B
Additional Information
Includes5763258 Screw and 5764157 Key
Country of OriginSE
