Iscar ISCAR 2800261

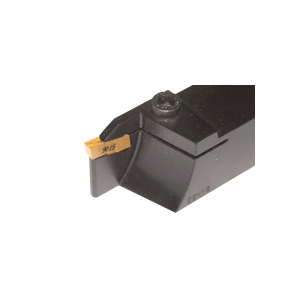

Iscar 2800261 CUT-GRIP Indexable Grooving Toolholder, Insert Compatibility: GI.., TIP.., 0.1 in Insert Seat, Right Hand Cutting, 3 in L Shank, 0.118 in W Min Groove, External, 3/4 in H x 3/4 in W Shank, GHGR Toolholder

UNSPSC: 23242106
Manufacturer PN: 2800261
$259.56 EA
Factory Order
Estimated to ship in 14 days
QTY:

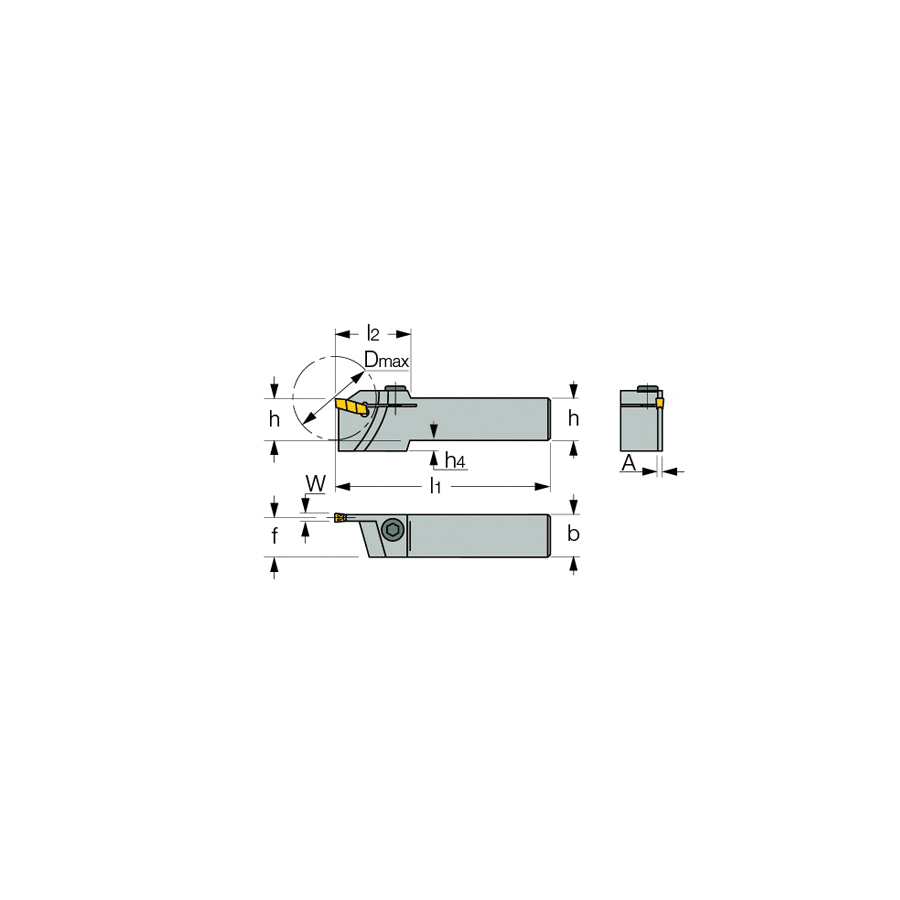

Iscar Indexable Grooving Toolholder, Series: CUT-GRIP, Insert Compatibility: GI.., TIP.., GHGR Toolholder, 1.4 in Head Length, 4-1/2 in Overall Length, 3/4 in H x 3/4 in W Shank, 0.1 in Insert Seat, Right Hand Cutting Direction, 0.118 in Minimum Groove Width, 0.79 in Maximum Depth of Cut, 3 in Shank Length, Socket Head Cap Screw, External

  • Features

  • 0.7 in insert to shank reference
  • 0.096 in seat width
  • 1.58 in parting diameter
  • 0.157 in maximum groove width
  • Without coolant hole
  • ISO Code : GHGR 19-3

Specifications

ApplicationDeep Grooving and Parting
Cutting DirectionRight Hand
Head Length1.4 in
Insert CompatibilityGI.., TIP..
Insert Seat Size0.1 in
Internal or ExternalExternal
Maximum Depth of Cut0.79 in
Minimum Groove Width0.118 in
Overall Length4-1/2 in
Screw TypeSocket Head Cap
SeriesCUT-GRIP
Shank Length3 in
Shank Size3/4 in H x 3/4 in W
Toolholder TypeGHGR
