TECHNIKS TECN 17801

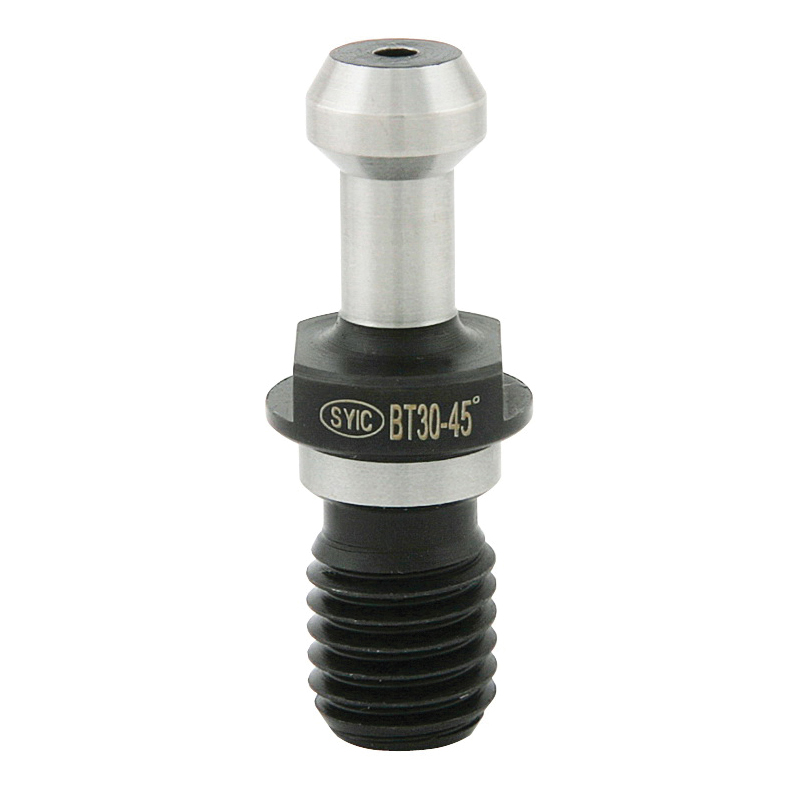

TECHNIKS 17801 Standard Retention Knob, M12 Thread, 11 mm Dia Knob, BT30 Taper, 43 mm OAL

Invoice description: Bt30 45 Deg. Pull Stud, 17801

UNSPSC: 23242100
Manufacturer PN: 17801
$32.76 EA
In stock (1)
QTY:


TECHNIKS Retention Knob, Standard, M12 Thread, 11 mm Diameter Knob, BT30 Taper, 7 mm Diameter Neck, 43 mm Overall Length, 12.5 mm Flange Thickness, 45 deg Angle Radius, 23 mm Flange to Angle Length, 18 mm Flange to Knob Length, No Through Coolant

  • Features

  • All mating surfaces are precision ground
  • Manufactured to the highest standards for maximum safety and long life
  • Hardened for maximum longevity
  • Suitable for use with BT30 taper holders

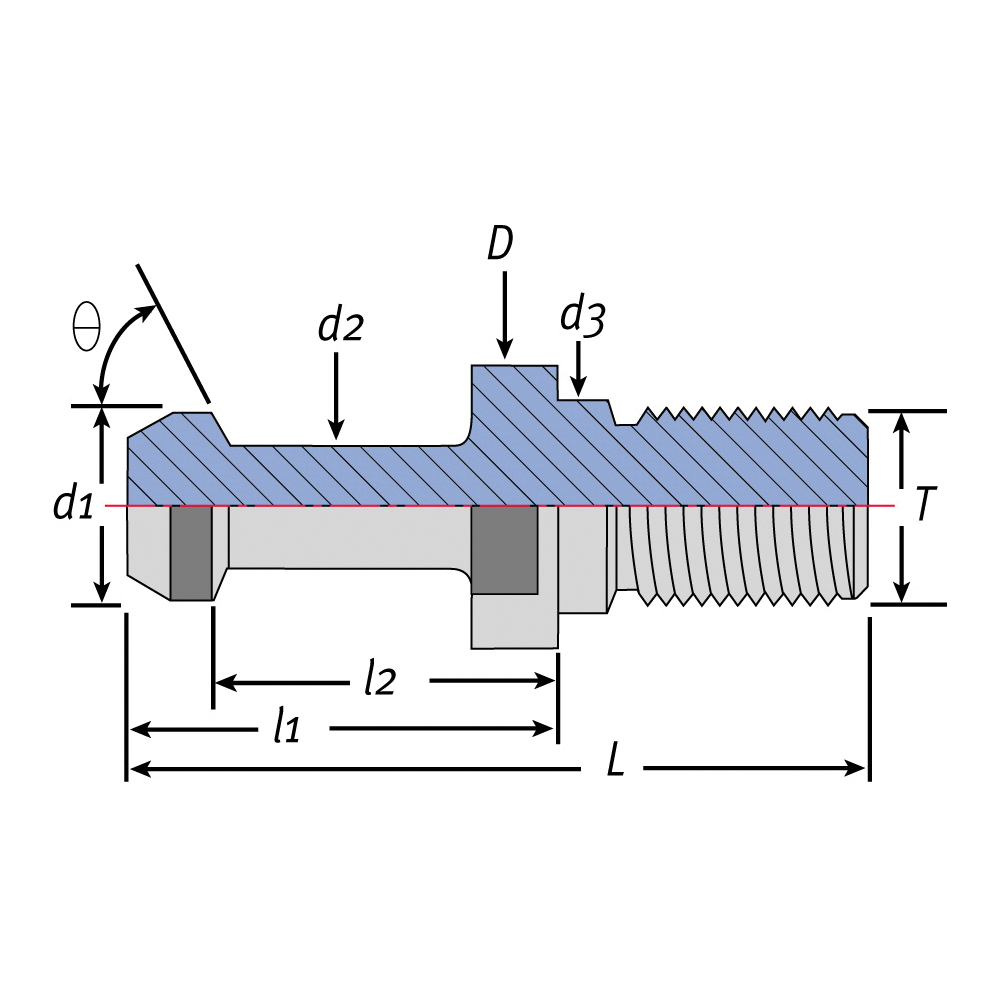

Specifications

Angle Radius45 deg
Flange Thickness12.5 mm
Flange to Angle Length23 mm
Flange to Knob Length18 mm
Knob Diameter11 mm
Neck Diameter7 mm
Overall Length43 mm
Taper SizeBT30
Thread SizeM12
Through Coolant (Yes/No)No
TypeStandard

Additional Information

Country of OriginTW
