YG-1 YG1 DGE433060

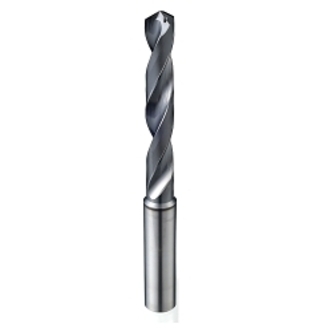

YG-1 DGE433060 Metric Long Length Dream Drill With Through Coolant, 6 mm Drill - Metric, 0.2362 in Drill - Decimal Inch, 82 mm OAL, Micrograin Carbide, DLC Coated
Invoice description:
Dream Drill Carbide Alu Coolant Thru 6.0 X 6
Factory Order
YG-1 Long Length Dream Drill, Metric, Series: DGE433, 6 mm Drill Size - Metric, 0.2362 in Drill Size - Decimal Inch, 82 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 44 mm Flute Length, 6 mm Shank, Straight Shank, 118 deg Point, Split Point, Right Hand Cutting, Micrograin Carbide Cutting Edge, Micrograin Carbide, DLC Coated, Applicable Materials: Aluminum and Aluminum Alloy
Features
- Optimized thining for aluminum and aluminum alloys to prevent any clogging from chip welding
- Wider and deeper flute gullets for maximum chip removal
- Special geometry and smooth coating reduces built up edge and improves finishes
Specifications
Applicable MaterialsAluminum and Aluminum Alloy
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicrograin Carbide
Drill Size - Decimal Inch0.2362 in
Drill Size - Metric6 mm
FinishDLC Coated
Flute Length44 mm
Flute TypeSpiral
MaterialMicrograin Carbide
Number of Flutes2
Overall Length82 mm
Point Angle118 deg
Point TypeSplit
SeriesDGE433
Shank Size6 mm
Shank TypeStraight
TypeMetric
Additional Information
Standards/ApprovalDIN 6537
