YG-1 YG1 DH408160

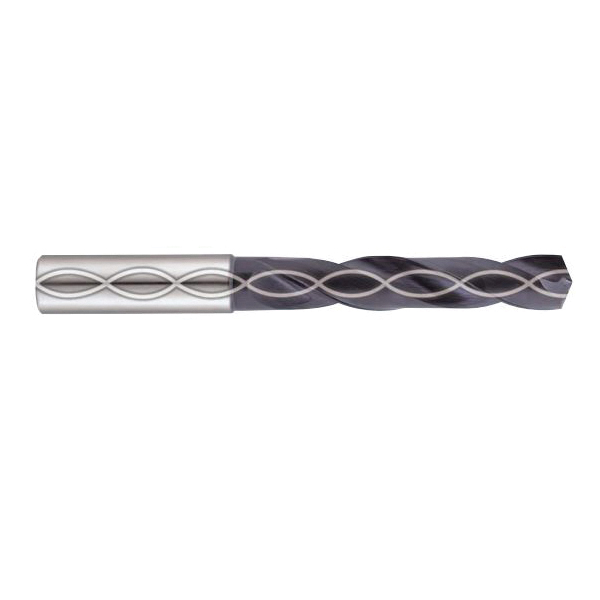

YG-1 DH408160 Long Length Dream Drill With Coolant Holes, 16 mm Drill - Metric, 0.6299 in Drill - Decimal Inch, 133 mm OAL, Micro Grain Carbide, TiAlN Coated
Invoice description:
16.0 Mm Carbide Drill
Factory Order
YG-1 Dream Drill, Long Length, Series: DH408, 16 mm Drill Size - Metric, 0.6299 in Drill Size - Decimal Inch, 133 mm Overall Length, 5XD Cutting Depth, Slow Spiral Flute, 83 mm Flute Length, 16 mm Shank, Straight Shank, 140 deg Point, Split Point, Right Hand Cutting, Micro Grain Carbide Cutting Edge, Micro Grain Carbide, TiAlN Coated, Applicable Materials: Cast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metals, Abrasive Plastic, Heavy and Light Metals
Features
- Excellent positioning
- Center drilling is not required
- Bushing is not necessary
- Reaming is not required
- Good chip removal
- Powerful drilling
Specifications
Applicable MaterialsCast Steel, Cast Iron, Chilled Cast Iron, Malleable Cast Iron, Non-Ferrous Metals, Abrasive Plastic, Heavy and Light Metals
Cutting Depth5XD
Cutting DirectionRight Hand
Cutting Edge MaterialMicro Grain Carbide
Drill Size - Decimal Inch0.6299 in
Drill Size - Metric16 mm
FinishTiAlN Coated
Flute Length83 mm
Flute TypeSlow Spiral
MaterialMicro Grain Carbide
Overall Length133 mm
Point Angle140 deg
Point TypeSplit
SeriesDH408
Shank Size16 mm
Shank TypeStraight
TypeLong Length
Additional Information
Standards/ApprovalDIN 6537
