ANSUL® ANSUL 14091

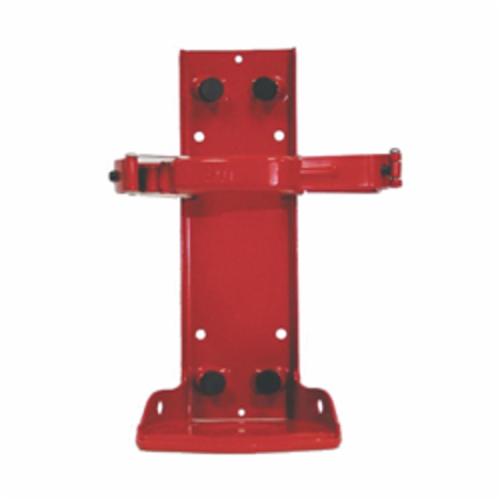

ANSUL® 14091 Red Line® Model 20 Multi-Purpose Extinguisher Bracket, 20 lb, Horizontal/Vertical/Sloping Mounting
ANSUL® Extinguisher Bracket, Multi-Purpose, Series: Red Line® Model 20, 20 lb, Steel, Red, Horizontal/Vertical/Sloping Mount
Features
- These brackets are most useful where vertical mounting of the extinguisher is not possible and where the extinguisher must be restrained
- Not for high stress or external vehicle applications
- These are welded brackets, constructed of heavy gauge steel with standard finish or red corrosion resistant baked on powder paint
- The over center toggle action of the clamp arm employs the closing tension to lock the arm tightly around the extinguisher while still providing quick and easy access
- Resilient pads grip and support the extinguisher, minimizing movement regardless of the bracket mounting position

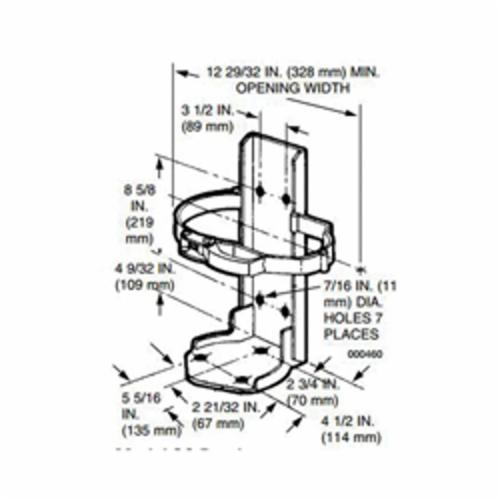

- Holes are provided for mounting the bracket by the back plate or by the base
- For 20 lb cartridge operated extinguishers
- Brackets may be mounted in a vertical, horizontal or sloping position on any sufficiently strong, stationary, supporting surface or within suitable vehicle compartments
- For external vehicle and high stress requirements, the heavy duty/vehicle bracket is recommended
Specifications
ApplicationFor mounting in cabs and compartments of over-the-road light trucks and automobiles and off-shore oil platforms or sea-going vessels
Type Multi-Purpose
Series Red Line® Model 20
Capacity 20 lb
Material Steel
Color Red
Mounting Type Horizontal/Vertical/Sloping
