ANSUL® ANSUL 30759

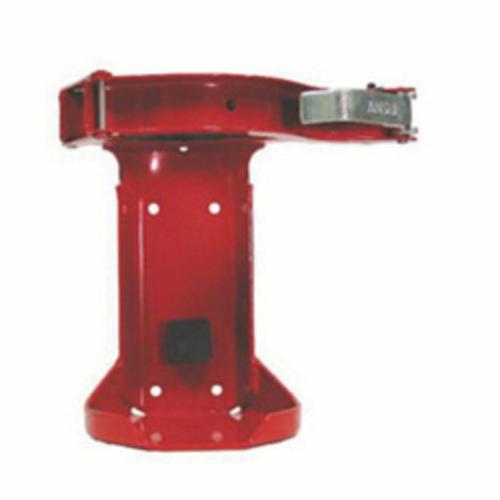

ANSUL® 30759 Red Line® Model 20 Multi-Purpose Extinguisher Bracket, 20 lb, Horizontal/Vertical/Sloping Mounting
ANSUL® Extinguisher Bracket, Multi-Purpose, Series: Red Line® Model 20, 20 lb, Steel, Red, Horizontal/Vertical/Sloping Mount
Features
- The brackets are constructed of heavy gauge steel, with standard or red corrosion resistant baked on powder paint
- The over center toggle action of the clamp arm employs the closing tension to lock the arm tightly around the extinguisher while still providing quick and easy access
- Resilient pads grip and support the extinguisher, minimizing movement regardless of the bracket mounting position
- Holes are provided for mounting thebracket by the back plate or by the base
- For 20 lb cartridge operated extinguishers
- These brackets are most useful where vertical mounting of the extinguisher is not possible and where the extinguisher must be restrained
Specifications
ApplicationFor mounting in cabs and compartments of over-the-road light trucks and automobiles and off-shore oil platforms or sea-going vessels
Type Multi-Purpose
Series Red Line® Model 20
Capacity 20 lb
Material Steel
Color Red
Mounting Type Horizontal/Vertical/Sloping
