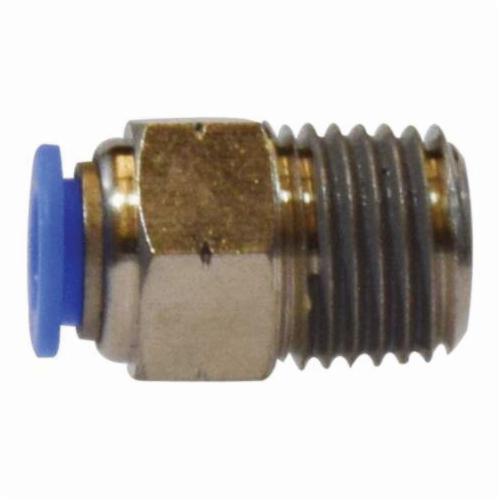

Midland Industries MIDM 20062C

Midland Industries 20062C Connector, 3/8 x 1/2 in Nominal, Push-In x MNPT, 0 to 150 psi Pressure, Brass/Composite Polyacetal

Invoice description: Connector 3/8x1/2in Push -inxmnpt Np Midland Industries 20062c Connector, 3/8 X 1/2 In Nominal, Push-in X Mnpt, 0 To 150 Psi Pressure, Brass/composite Polyacetal

UNSPSC: 40141734
Manufacturer PN: 20062C
$7.60 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Connector, 3/8 x 1/2 in Nominal, Push-In x MNPT, 0 to 150 psi, -104 to 180 deg F, Brass/Composite Polyacetal, Nickel Plated

  • Features

  • The latest generation of composite material is used in the body construction in addition to brass on threaded components and stainless steel on the gripper
  • +/- 0.02 tolerance on all dimensions
  • Air fluid admitted
  • 340 psi minimum burst pressure
  • Composite polyacetal (Hemopolymer, Copolymer) and brass body, stainless steel gripper ring

Specifications

End StylePush-In x MNPT
FinishNickel Plated
MaterialBrass/Composite Polyacetal
Nominal Size3/8 x 1/2 in
Pressure Rating0 to 150 psi
Temperature Rating-104 to 180 deg F

Additional Information

Country of OriginUS
