Midland Industries MIDM 20082C

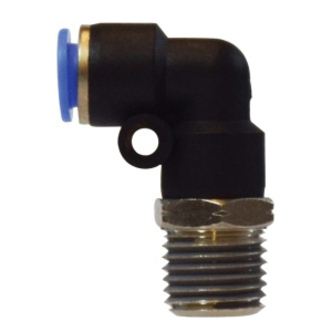

Midland Industries 20082C Swivel Elbow, 1/4 in Nominal, Tube x MNPT, 0 to 150 psi Pressure, Brass/Composite Polyacetal, Import

Invoice description: Elbow Swvl 1/4in Tubexmn Pt 0to150psi Midland Industries 20082c Swivel Elbow, 1/4 In Nominal, Tube X Mnpt, 0 To 150 Psi Pressure, Brass/composite Polyacetal, Import

UNSPSC: 40141734
Manufacturer PN: 20082C
$4.22 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Swivel Elbow, 1/4 in Nominal, Tube x MNPT, 0 to 150 psi, -104 to 180 deg F, Brass/Composite Polyacetal, Import

  • Features

  • The latest generation of composite material is used in the body construction in addition to brass on threaded components and stainless steel on the gripper
  • +/- 0.02 tolerance on all dimensions
  • Air fluid admitted
  • 340 psi minimum burst pressure
  • Composite polyacetal (Hemopolymer, Copolymer) and brass body, stainless steel gripper ring
  • Swivels for installation only
  • 1/4 in thread size

Specifications

Domestic/ImportImport
End StyleTube x MNPT
MaterialBrass/Composite Polyacetal
Nominal Size1/4 in
Pressure Rating0 to 150 psi
Temperature Rating-104 to 180 deg F

Additional Information

Country of OriginCN
