Midland Industries MIDM 20127C

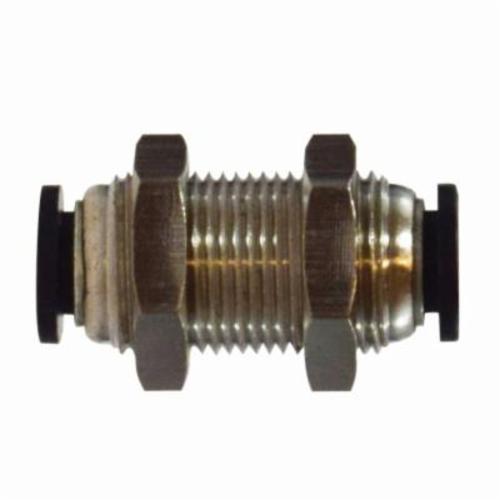

Midland Industries 20127C Bulkhead Union, 1/4 in Nominal, Push-In, 0 to 150 psi Pressure, Brass/Composite Polyacetal

Invoice description: Union Bhd 1/4in Push-in 0to150psi Midland Industries 20127c Bulkhead Union, 1/4 In Nominal, Push-in, 0 To 150 Psi Pressure, Brass/composite Polyacetal

UNSPSC: 40183102
Manufacturer PN: 20127C
$9.95 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Bulkhead Union, 1/4 in Nominal, Push-In, 0 to 150 psi, -104 to 180 deg F, Brass/Composite Polyacetal

  • Features

  • The latest generation of composite material is used in the body construction in addition to brass on threaded components and stainless steel on the gripper
  • +/- 0.02 tolerance on all dimensions
  • Air fluid admitted
  • 340 psi minimum burst pressure
  • Composite polyacetal (Hemopolymer, Copolymer) and brass body, stainless steel gripper ring

Specifications

End StylePush-In
MaterialBrass/Composite Polyacetal
Nominal Size1/4 in
Pressure Rating0 to 150 psi
Temperature Rating-104 to 180 deg F

Additional Information

Country of OriginUS
