Midland Industries MIDM 20553C

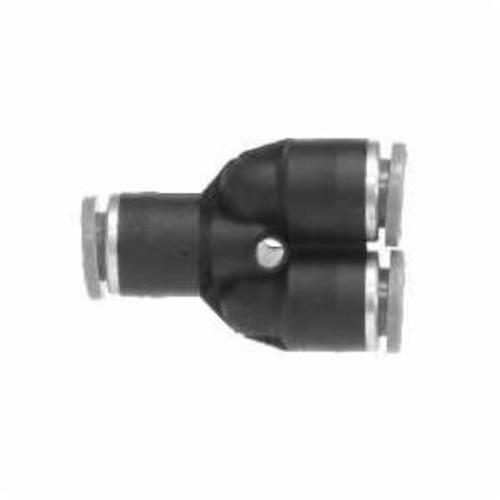

Midland Industries 20553C Union Y-Connector, 1/4 in Nominal, Tube, 0 to 150 psi Pressure, Brass/Composite Polyacetal, Import

Invoice description: Y-connector Un 1/4in Tub E 0to150psi Midland Industries 20553c Union Y-connector, 1/4 In Nominal, Tube, 0 To 150 Psi Pressure, Brass/composite Polyacetal, Import

UNSPSC: 40183102
Manufacturer PN: 20553C
$3.95 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Union Y-Connector, 1/4 in Nominal, Tube, 0 to 150 psi, -104 to 180 deg F, Brass/Composite Polyacetal, Import

  • Features

  • The latest generation of composite material is used in the body construction in addition to brass on threaded components and stainless steel on the gripper
  • +/- 0.02 tolerance on all dimensions
  • Air fluid admitted
  • 340 psi minimum burst pressure
  • Composite polyacetal (Hemopolymer, Copolymer) and brass body, stainless steel gripper ring

Specifications

Domestic/ImportImport
End StyleTube
MaterialBrass/Composite Polyacetal
Nominal Size1/4 in
Pressure Rating0 to 150 psi
Temperature Rating-104 to 180 deg F

Additional Information

Country of OriginCN
