Midland Industries MIDM 20557C

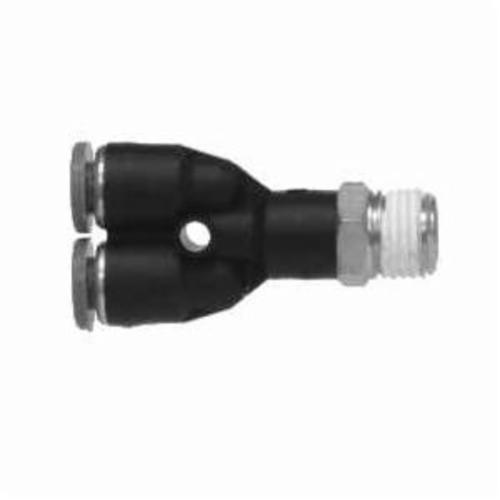

Midland Industries 20557C Swivel Y-Connector, 1/4 in Nominal, Tube x MNPT, 0 to 150 psi Pressure, Brass/Composite Polyacetal

Invoice description: Y-connector Swvl 1/4in T Ubexmnpt Midland Industries 20557c Swivel Y-connector, 1/4 In Nominal, Tube X Mnpt, 0 To 150 Psi Pressure, Brass/composite Polyacetal

UNSPSC: 40183102
Manufacturer PN: 20557C
$10.87 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Swivel Y-Connector, 1/4 in Nominal, Tube x MNPT, 0 to 150 psi, -104 to 180 deg F, Brass/Composite Polyacetal

  • Features

  • The latest generation of composite material is used in the body construction in addition to brass on threaded components and stainless steel on the gripper
  • +/- 0.02 tolerance on all dimensions
  • Air fluid admitted
  • 340 psi minimum burst pressure
  • Composite polyacetal (Hemopolymer, Copolymer) and brass body, stainless steel gripper ring
  • Swivels for installation only
  • 1/4 in thread size

Specifications

End StyleTube x MNPT
MaterialBrass/Composite Polyacetal
Nominal Size1/4 in
Pressure Rating0 to 150 psi
Temperature Rating-104 to 180 deg F

Additional Information

Country of OriginUS
