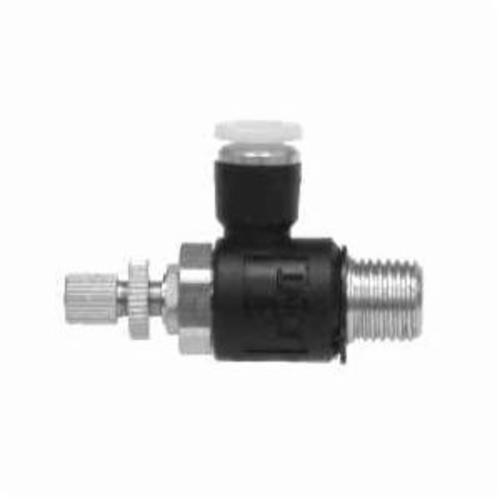

Midland Industries MIDM 20728C

Midland Industries 20728C Right Angle Flow Control, 1/4 in Nominal, Tube x MNPT, 0 to 150 psi Pressure, Brass/Composite Polyacetal

Invoice description: Control Flow Angle R 1/4 In Tubexmnpt Midland Industries 20728c Right Angle Flow Control, 1/4 In Nominal, Tube X Mnpt, 0 To 150 Psi Pressure, Brass/composite Polyacetal

UNSPSC: 40183102
Manufacturer PN: 20728C
$26.59 EA
Factory Order
Estimated to ship in 7 days
QTY:


Midland Industries Right Angle Flow Control, 1/4 in Nominal, Tube x MNPT, 0 to 150 psi, -104 to 180 deg F, Brass/Composite Polyacetal

  • Features

  • The latest generation of composite material is used in the body construction in addition to brass on threaded components and stainless steel on the gripper
  • +/- 0.02 tolerance on all dimensions
  • Air fluid admitted
  • 340 psi minimum burst pressure
  • Composite polyacetal (Hemopolymer, Copolymer) and brass body, stainless steel gripper ring

Specifications

End StyleTube x MNPT
MaterialBrass/Composite Polyacetal
Nominal Size1/4 in
Pressure Rating0 to 150 psi
Temperature Rating-104 to 180 deg F

Additional Information

Country of OriginUS
