Midland Industries MIDM 260244

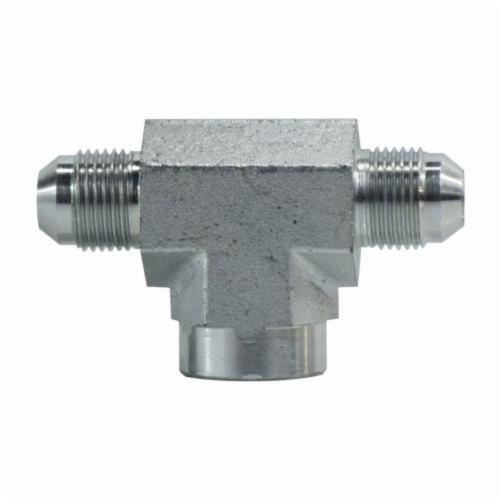

Midland Industries 260244 Branch Tee, 7/16-20 x 7/16-20 x 1/4 in Nominal, 37 deg SAE Male JIC Flare x 37 deg SAE Male JIC Flare x Female Pipe, Steel
Invoice description:
Tee Br 7/16-20x7/16-20x1 /4in Midland Industries 260244 Branch Tee, 7/16-20 X 7/16-20 X 1/4 In Nominal, 37 Deg Sae Male Jic Flare X 37 Deg Sae Male Jic Flare X Female Pipe, Steel
Factory Order
Midland Industries Branch Tee, 7/16-20 x 7/16-20 x 1/4 in Nominal, 37 deg SAE Male JIC Flare x 37 deg SAE Male JIC Flare x Female Pipe, 5000 to 4500 psi, Steel
Features
- Flared fitting or tube assembly is tightened against the cone with a swivel nut
- By forcing the flare against the cone during the torquing process, the nose cone is slightly deformed and meshes to create a metal to metal seal between the flare and the cone
Specifications
End Style37 deg SAE Male JIC Flare x 37 deg SAE Male JIC Flare x Female Pipe
MaterialSteel
Nominal Size7/16-20 x 7/16-20 x 1/4 in
Pressure Rating5000 to 4500 psi
Additional Information
Standards/ApprovalSAE 070427
Country of OriginUS
