Midland Industries MIDM 260288

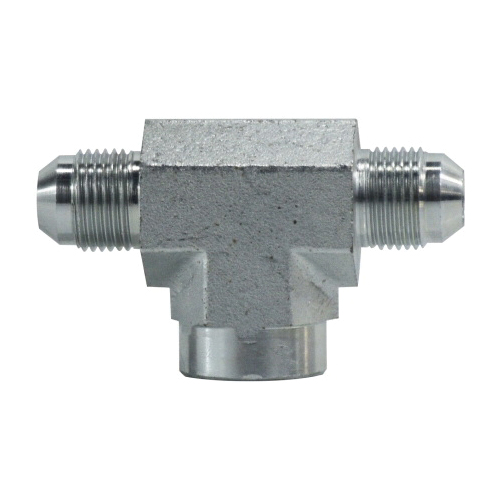

Midland Industries 260288 Branch Tee, 3/4-16 x 3/4-16 x 1/2 in Nominal, 37 deg SAE Male JIC Flare x 37 deg SAE Male JIC Flare x Female Pipe, Steel
Invoice description:
Tee Br 3/4-16x3/4-16x1/2 In Midland Industries 260288 Branch Tee, 3/4-16 X 3/4-16 X 1/2 In Nominal, 37 Deg Sae Male Jic Flare X 37 Deg Sae Male Jic Flare X Female Pipe, Steel
Factory Order
Midland Industries Branch Tee, 3/4-16 x 3/4-16 x 1/2 in Nominal, 37 deg SAE Male JIC Flare x 37 deg SAE Male JIC Flare x Female Pipe, 4500 to 4000 psi, Steel
Features
- Flared fitting or tube assembly is tightened against the cone with a swivel nut
- By forcing the flare against the cone during the torquing process, the nose cone is slightly deformed and meshes to create a metal to metal seal between the flare and the cone
Specifications
End Style37 deg SAE Male JIC Flare x 37 deg SAE Male JIC Flare x Female Pipe
MaterialSteel
Nominal Size3/4-16 x 3/4-16 x 1/2 in
Pressure Rating4500 to 4000 psi
Additional Information
Standards/ApprovalSAE 070427
Country of OriginUS
