Hannibal HANN 600064

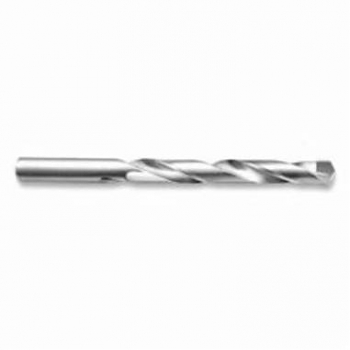

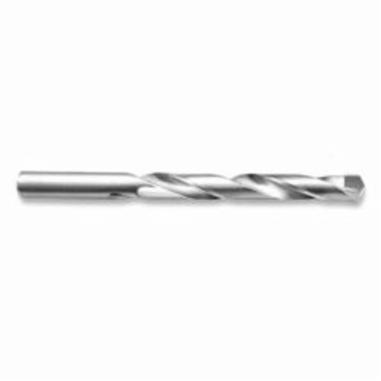

Hannibal 600064 600M Material Specific Jobber Length Drill Bit, 6.4 mm Drill - Metric, 0.252 in Drill - Decimal Inch, 118 deg Point, Tool Steel
Hannibal Jobber Length Drill Bit, Material Specific, Series: 600M, Imperial/Metric, 6.4 mm Drill - Metric, 0.252 in Drill - Decimal Inch, 105 mm Overall Length, 73 mm Cutting Depth, Spiral Flute, 73 mm Flute Length, Flat/Tanged Shank, 118 deg Point, Standard Point, Carbide Cutting Edge, No Through Coolant, Tool Steel, Applicable Materials: Cast Iron and Non-Ferrous Materials
Features
- Drills are end cutting tools used to produce holes when rapid removal of material is desired
- Twist drills are generally effective in holes up to 3 tool diameters deep, peck cycles should be used for deeper holes to achieve better chip evacuation
- Carbide tip high temperature brazed to hardened tool steel body
- Smooth flutes for effective chip flow
- Precision ground to insure concentricity of tip and body
- The most popular carbide tipped drill will perform satisfactorily under a variety of conditions
Specifications
Type Material Specific
Series 600M
Drill Diameter Measu Imperial/Metric
Drill Size - Metric 6.4 mm
Drill Size - Decimal 0.252 in
Overall Length 105 mm
Cutting Depth 73 mm
