Midland Industries MIDM 6803NWO4

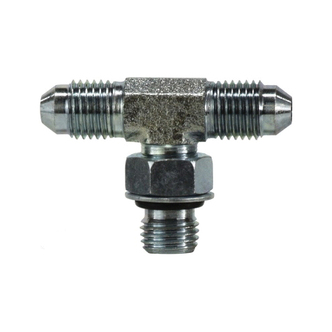

Midland Industries 6803NWO4 Branch Tee, 7/16-20 Nominal, Male JIC Flare x Male JIC Flare x Male ORB, Steel
Invoice description:
Tee Br 7/16-20 4500psi S Tl Midland Industries 6803nwo4 Branch Tee, 7/16-20 Nominal, Male Jic Flare X Male Jic Flare X Male Orb, Steel
Factory Order
Midland Industries Branch Tee, 7/16-20 Nominal, Male JIC Flare x Male JIC Flare x Male ORB, 4500 psi, Steel
Features
- O-ring boss ports (ORB) provide a seal by trapping the fittings O-ring inside a port cavity
- When a fitting is installed into the port, the o-ring is trapped between the fitting body hex or washer and port cavity
- Straight fittings include a hex, and sometimes an additional cylindrical shoulder below the hex and above the threads, to trap the o-ring in the port cavity
- Elbow and tee fittings require a backup washer and a locknut above the O-ring on the threaded stud to permit a 360 deg orientation of the fitting around the port
Specifications
End StyleMale JIC Flare x Male JIC Flare x Male ORB
MaterialSteel
Nominal Size7/16-20
Pressure Rating4500 psi
Additional Information
Standards/ApprovalSAE 070429|MS 51529
Country of OriginUS
