MMM MIDM MMPH50

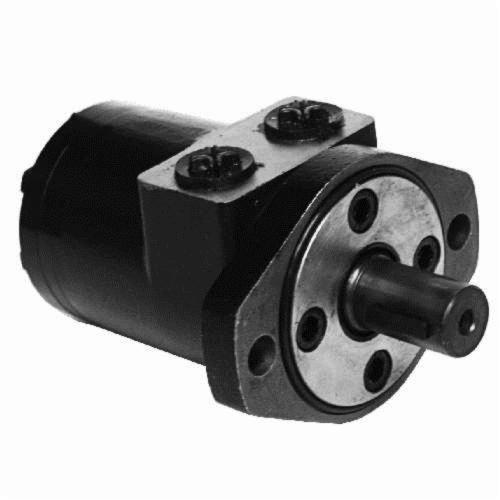

MMM MMPH50 Hydraulic Motor, 11.85 gpm Continuous, 13.15 gpm Intermittent Flow Rate, 51.7 cu-cm/rev Displacement, 1840 psi Continuous/2425 psi Intermittent Pressure, 880 rpm Continuous/975 rpm Intermittent Max
Invoice description:
Motor Hc 51.7cu-cm/revmm Ph Mmm Mmph50 Hydraulic Motor, 11.85 Gpm Continuous, 13.15 Gpm Intermittent Flow Rate, 51.7 Cu-cm/rev Displacement, 1840 Psi Continuous/2425 Psi Intermittent Pressure, 880 Rpm Continuous/975 Rpm Intermittent Max
Factory Order
MMM Hydraulic Motor, Series: MMPH, 11.85 gpm Continuous, 13.15 gpm Intermittent Flow Rate, 51.7 cu-cm/rev Displacement, 1840 psi Continuous/2425 psi Intermittent Pressure, 880 rpm Continuous/975 rpm Intermittent Maximum, 717 in-lb Continuous/956 in-lb Intermittent Torque, 9.4 hp Continuous/12 hp Intermittent Power
Features
- Gear set, shaft distribution flow
- Compact, high efficient, low speed high torque design which can be used in either parallel or series systems
Specifications
Displacement51.7 cu-cm/rev
Flow Rate11.85 gpm Continuous, 13.15 gpm Intermittent
Maximum Speed880 rpm Continuous/975 rpm Intermittent
Power Rating9.4 hp Continuous/12 hp Intermittent
Pressure Rating1840 psi Continuous/2425 psi Intermittent
SeriesMMPH
Torque Rating717 in-lb Continuous/956 in-lb Intermittent
Additional Information
Country of OriginUS
