MMM MIDM MMRS125

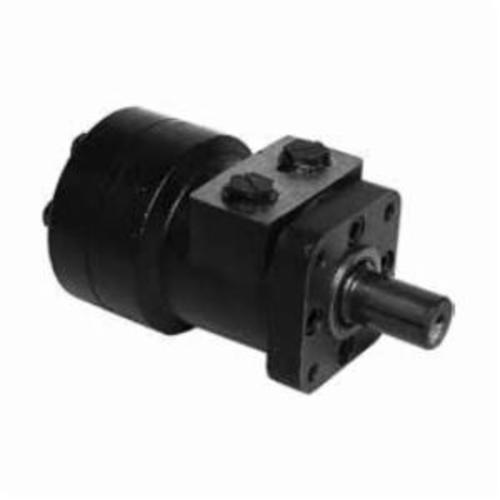

MMM MMRS125 Hydraulic Motor, 15.8 gpm Continuous, 19.75 gpm Intermittent Flow Rate, 124.9 cu-cm/rev Displacement, 2576 psi Continuous/2576 psi Intermittent Pressure, 475 rpm Continuous/600 rpm Intermittent Max
Invoice description:
Motor Hc 124.9cu-cm/revm Mrs Mmm Mmrs125 Hydraulic Motor, 15.8 Gpm Continuous, 19.75 Gpm Intermittent Flow Rate, 124.9 Cu-cm/rev Displacement, 2576 Psi Continuous/2576 Psi Intermittent Pressure, 475 Rpm Continuous/600 Rpm Intermittent Max
Factory Order
MMM Hydraulic Motor, Series: MMRS, 15.8 gpm Continuous, 19.75 gpm Intermittent Flow Rate, 124.9 cu-cm/rev Displacement, 2576 psi Continuous/2576 psi Intermittent Pressure, 475 rpm Continuous/600 rpm Intermittent Maximum, 2584 in-lb Continuous/3010 in-lb Intermittent Torque, 18.75 hp Continuous/21.45 hp Intermittent Power
Features
- Advanced gear set, shaft distribution flow, hydraulic motor is a compact, low noise, highly efficient torque low speed design
- Gear set also affords a reliable smooth startup at low pressure
- Special design of the drive linkage and high pressure capability of the shaft seal provides a long life and these motors can be used in either series or parallel operation
Specifications
Displacement124.9 cu-cm/rev
Flow Rate15.8 gpm Continuous, 19.75 gpm Intermittent
Maximum Speed475 rpm Continuous/600 rpm Intermittent
Power Rating18.75 hp Continuous/21.45 hp Intermittent
Pressure Rating2576 psi Continuous/2576 psi Intermittent
SeriesMMRS
Torque Rating2584 in-lb Continuous/3010 in-lb Intermittent
Additional Information
Country of OriginUS
