JET JET 354400

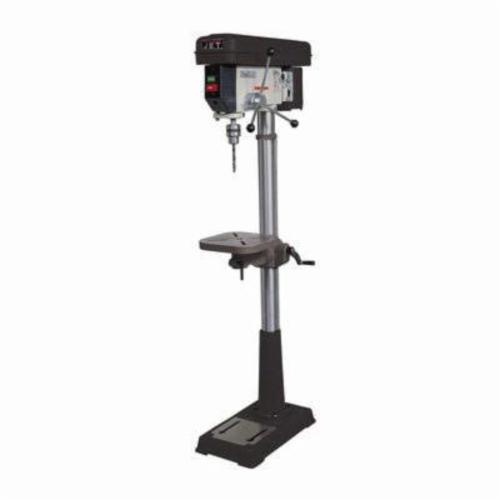

JET JT9-354400 Drill Press, 0.75 hp, 115/230 VAC, 5/8 in Chuck, 15 in Swing, 9-1/2 in L x 9-1/2 in W Table

Invoice description: Press Drill Floor 15" J2 500 115v 1ph

UPC: 662756092649
UNSPSC: 23241801
Manufacturer PN: JT9-354400
$1,618.86 EA
Factory Order
Estimated to ship in 17 days
QTY:


JET, JT9-354400, Drill Press, 5/8 in Chuck, 15 in Swing, MT-2 Spindle Taper, 3-1/8 in Spindle Travel, 200 to 3630 rpm Spindle Speed, 16 Spindle Speed, 24-1/2 in Spindle to Table Distance, 7-1/2 in Spindle to Column Distance, 9-1/2 in L x 9-1/2 in W Table, 44 lb Table Load, 45 deg Table Tilt, 11 in L x 19-1/2 in W Base, 2-7/8 in Diameter Column, 0.75 hp, 115/230 VAC, 9/4.5 A, 31 in L x 13-3/8 in W x 63-1/2 in H Dimensions

  • Features

  • 15 in drills to center of circle
  • 1/2 in mild steel drilling capacity
  • 7-1/2 in distance column to spindle
  • 1 Phase, 60 Hz
  • Constructed to provide a solid base for drilling
  • The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy
  • Large quill allows greater accuracy
  • Large ground steel column for maximum head and table support
  • Table tilts 45 deg
  • 3-1/8 in stroke for deep hole applications

Specifications

Amperage Rating9/4.5 A
Base Dimensions11 in L x 19-1/2 in W
Chuck Size5/8 in
Column Diameter2-7/8 in
Dimensions31 in L x 13-3/8 in W x 63-1/2 in H
Horsepower0.75 hp
Number of Spindle Speeds16
Spindle Speed200 to 3630 rpm
Spindle TaperMT-2
Spindle to Column Distance7-1/2 in
Spindle to Table Distance24-1/2 in
Spindle Travel3-1/8 in
Swing15 in
Table Load Capacity44 lb
Table Size9-1/2 in L x 9-1/2 in W
Table Tilt45 deg
Voltage Rating115/230 VAC

Additional Information

IncludesChuck, Key
Country of OriginCN
