Lenox LENOX 30883VB3

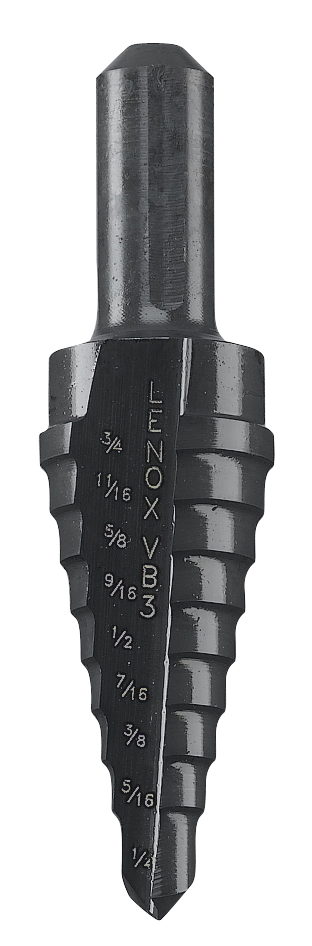

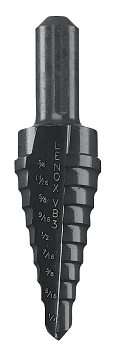

Lenox 30883VB3 Step Drill Bit, 1/4 in Dia Min Hole, 3/4 in Dia Max Hole, 9 Steps, HSS, 9 Hole Sizes, 3/8 in Shank
In stock
(8)
Lenox Step Drill Bit, Imperial, 1/4 in Diameter Minimum Hole, 3/4 in Diameter Maximum Hole, 2-3/4 in Overall Length, 9 Steps, 1/16 in Step Depth, 9 Hole, 2 Flutes, 3/8 in Shank, 3-Flat Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Most Metals and Stainless Steel
Features
- Accurate, patented two flute design with burr-free holes, cuts fast, clean and round holes
- Split point design for faster penetration and less walking
- Steam oxide coating adds durability
- Enhanced flute design removes chips rapidly
- Eliminates the problem of tip breakage on standard drill bit
Specifications
Applicable MaterialsMost Metals and Stainless Steel
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Drill Diameter Measurement SystemImperial
FinishSteam Oxide
MaterialHSS
Maximum Hole Diameter3/4 in
Minimum Hole Diameter1/4 in
Number of Flutes2
Number of Hole Sizes9
Number of Steps9
Overall Length2-3/4 in
Point Angle135 deg
Point TypeSplit
Shank Size3/8 in
Shank Type3-Flat
Step Depth1/16 in
Specification Sheet
