DeWALT DW DWA1784IR

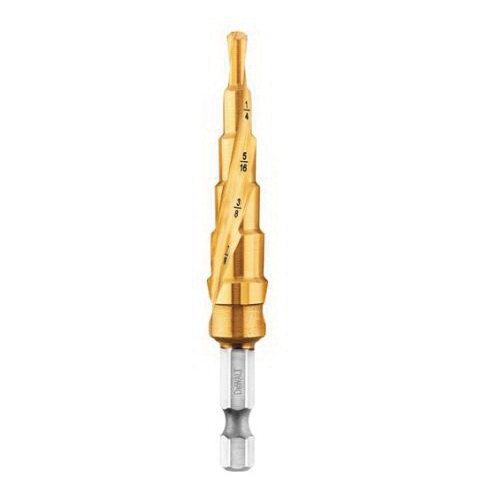

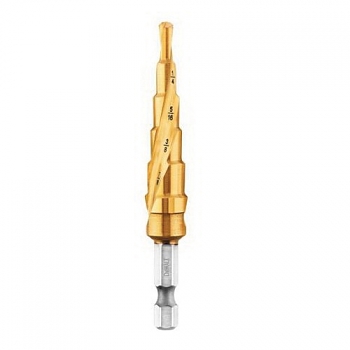

DeWALT IMPACT READY DWA1784IR High Performance Impact-Rated Step Drill Bit, Imperial, 3/16 in Dia Min Hole, 1/2 in Dia Max Hole, 6 Steps, Titanium, 6 Hole Sizes, 1/4 in Shank
Invoice description:
Bit Step 3/16-1/2 Impact Ready
In stock
(4)
DeWALT IMPACT READY Step Drill Bit, High Performance Impact-Rated, Imperial, 3/16 in Diameter Minimum Hole, 1/2 in Diameter Maximum Hole, 3-1/2 in Overall Length, 6 Steps, 3/8 in Step Depth, 6 Hole, 2 Flutes, 3/16 in, 1/4 in, 5/16 in, 3/8 in, 7/16 in, 1/2 in, Spiral Flute, 1/4 in Shank, Hex Shank, 135 deg Point, Split Point, Titanium, TiN Coated, Applicable Materials: Ferrous and Non-Ferrous Material
Features
- Titanium 2-flute spiral design provides longer life and better chip removal
- Laser engraved numbers increases step visibility
- Optimized for impact driver usage
- Split point tip increases speed
- Works with rotary drills
Specifications
ApplicationGeneral Purpose Applications
Applicable MaterialsFerrous and Non-Ferrous Material
Drill Diameter Measurement SystemImperial
FinishTiN Coated
Flute TypeSpiral
Hole Sizes Cut3/16 in, 1/4 in, 5/16 in, 3/8 in, 7/16 in, 1/2 in
MaterialTitanium
Maximum Hole Diameter1/2 in
Minimum Hole Diameter3/16 in
Number of Flutes2
Number of Hole Sizes6
Number of Steps6
Overall Length3-1/2 in
Point Angle135 deg
Point TypeSplit
Shank Size1/4 in
Shank TypeHex
Step Depth3/8 in
TypeHigh Performance Impact-Rated
Additional Information
Country of OriginCN
