DeWALT DW DWA1783IR

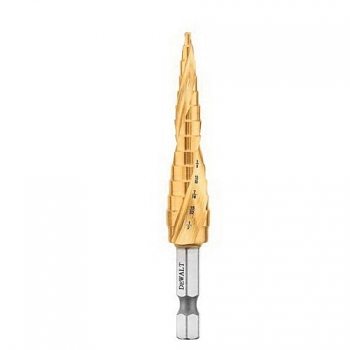

DeWALT IMPACT READY DWA1783IR High Performance Impact-Rated Step Drill Bit, Imperial, 1/8 in Dia Min Hole, 1/2 in Dia Max Hole, 13 Steps, Titanium, 13 Hole Sizes, 1/4 in Shank
In stock
(6)
DeWALT IMPACT READY Step Drill Bit, High Performance Impact-Rated, Imperial, 1/8 in Diameter Minimum Hole, 1/2 in Diameter Maximum Hole, 3-13/32 in Overall Length, 13 Steps, 5/32 in Step Depth, 13 Hole, 2 Flutes, 1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in, 9/32 in, 5/16 in, 11/32 in, 3/8 in, 13/32 in, 7/16 in, 15/32 in, 1/2 in, Spiral Flute, 1/4 in Shank, Hex Shank, 135 deg Point, Split Point, Titanium, TiN Coated, Applicable Materials: Ferrous and Non-Ferrous Material
Features

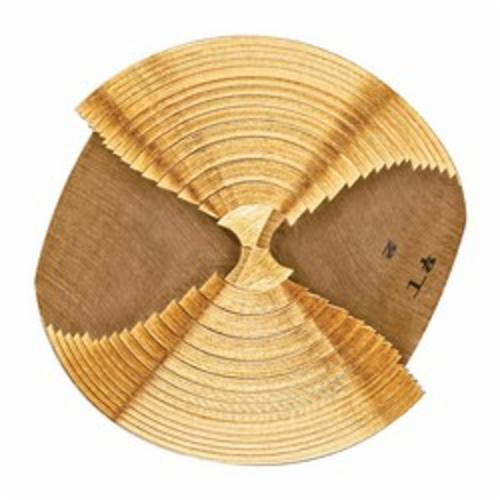

- Titanium 2-flute spiral design provides longer life and better chip removal

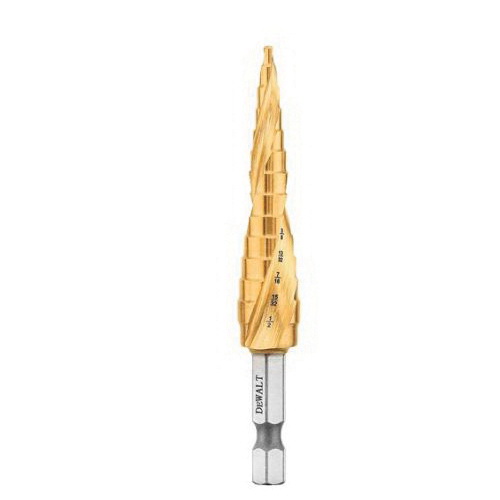

- Laser engraved numbers increases step visibility

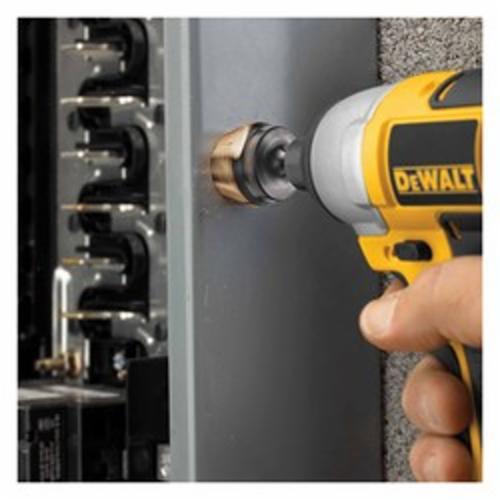

- Optimized for impact driver usage
- Split point tip increases speed
- Works with rotary drills
Specifications
ApplicationGeneral Purpose Applications
Applicable MaterialsFerrous and Non-Ferrous Material
Drill Diameter Measurement SystemImperial
FinishTiN Coated
Flute TypeSpiral
Hole Sizes Cut1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in, 9/32 in, 5/16 in, 11/32 in, 3/8 in, 13/32 in, 7/16 in, 15/32 in, 1/2 in
MaterialTitanium
Maximum Hole Diameter1/2 in
Minimum Hole Diameter1/8 in
Number of Flutes2
Number of Hole Sizes13
Number of Steps13
Overall Length3-13/32 in
Point Angle135 deg
Point TypeSplit
Shank Size1/4 in
Shank TypeHex
Step Depth5/32 in
TypeHigh Performance Impact-Rated
