Louisville® LOU AH1004

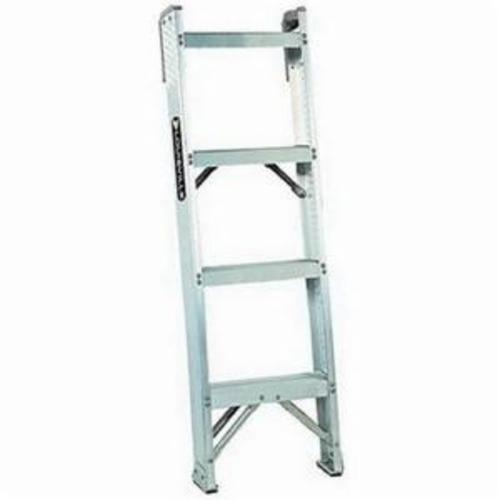

Louisville® AH1004 AH1000 Shelf Extension Ladder, 4 ft OAL, 300 lb Load, Aluminum, Type IA
UPC: 728865017536
UNSPSC:
30191501
Manufacturer PN: AH1004
$97.74 EA
Factory Order
Estimated to ship in 22 days
Estimated to ship in 22 days
Louisville® Shelf Extension Ladder, Series: AH1000, 4 ft Overall Length, ANSI Code: Type IA, 300 lb, Aluminum, 1 ft 11 in Maximum Working Length, 4 ft Section Length, 15-1/8 in Outside Shoe Base Width, Rubber Bumper Shoe
Features
- Two pair of heavy duty steel gussets support bottom step
- Aluminum angle feet with thick rubber tread on both legs to provide sure footing and stability
- Rubber bumper for stability
- Steps are level when the ladder is set at 18 deg
- Rubber bumper - ladder has parallel sides with thick rubber bumpers extending 6-inch down the side rails for protection of landing surface and stability
- Double rivet step construction - each step secured with six, large headed, semi-tubular steel rivets for maximum strength
- Ideal for getting to shelves with narrow aisles when standard ladders will not fit
- Standard step rung
- 3 in step depth
- 3-1/8 in rail depth
Specifications
ApplicationFor all demanding industrial applications
Series AH1000
Overall Length 4 ft
ANSI Code Type IA
Load Capacity 300 lb
Material Aluminum
Maximum Working Leng 1 ft 11 in
Section Length 4 ft
Outside Shoe Base Wi 15-1/8 in
